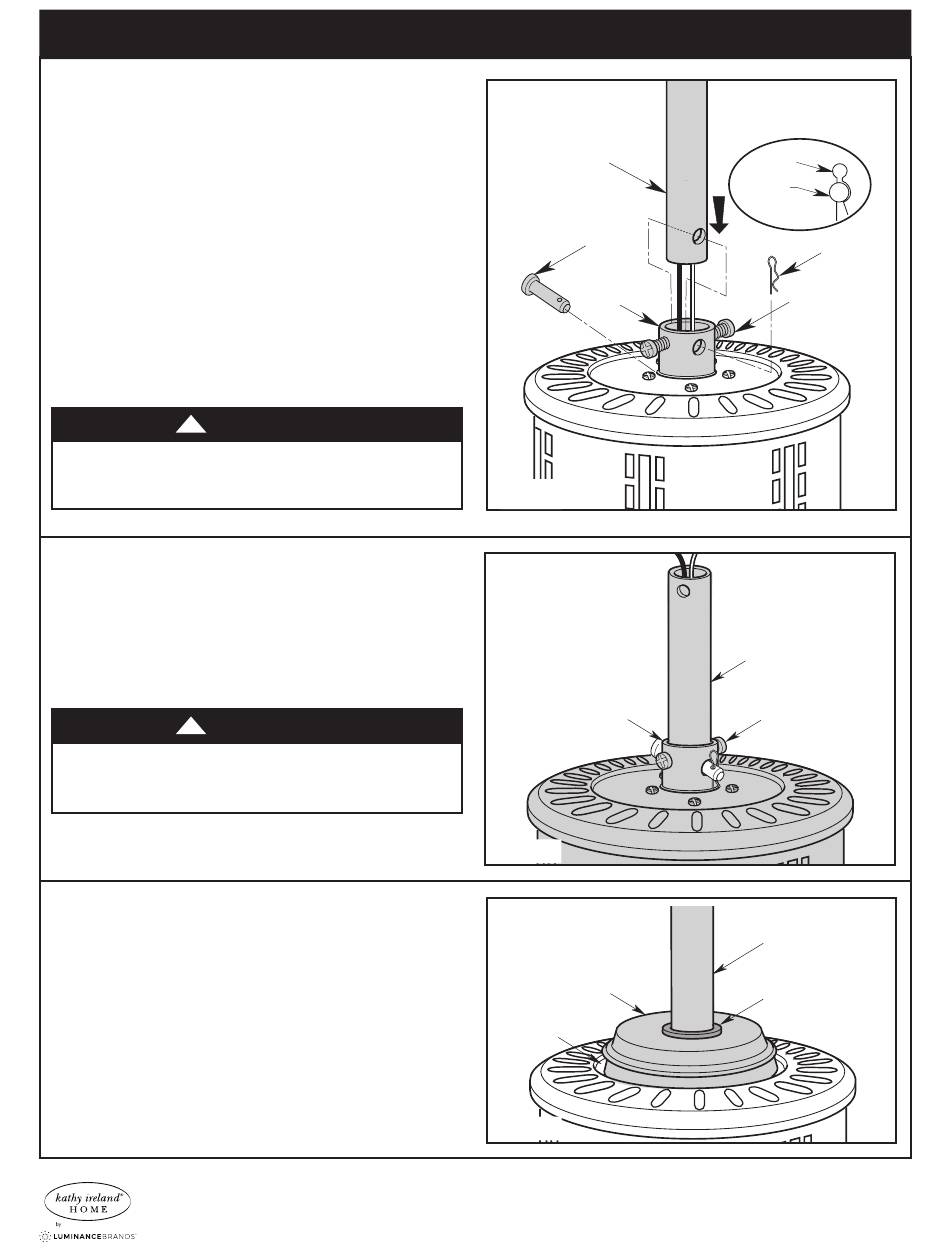

3. Ceiling Fan Assembly
3.4
Loosen the two Set Screws in the Motor Coupler.
Place the 6" Downrod into the Motor Coupler, aligning
the Clevis Pin Holes in the Downrod with the Holes in
the Motor Coupler (Figure 3).
The Clevis Pin must go through the Holes in the Motor
Coupler and the Holes in the Downrod.
Be sure to push the straight leg of the Hairpin Clip
through the Hole near the end of the Clevis Pin until
the curved portion of the Hairpin Clip snaps around the
Clevis Pin.
The Hairpin Clip must be properly installed to prevent
the Clevis Pin from working loose.
Pull on the Downrod to make sure the Clevis Pin is
properly installed.
WARNING
!
It is critical that the clevis pin in the motor coupling
is properly installed. Failure to verify that the pin is
properly installed could result in the fan falling.
3.5
While pulling up on the 6" Downrod, retighten the two
Set Screws (previously loosened) in the Motor Coupler
to secure the Downrod into place (Figure 4).
NOTE: The Set Screws must be properly installed
as described above, or fan wobble could result.
WARNING
!
It is critical that the set screws are securely tightened.
Failure to verify that the set screws are properly
installed could result in the fan falling.
3.6
Route the 80" Black and White Motor Wires through the
Coupler Cover (Figure 5).
Make sure the Grommet is properly installed in the
Coupler Cover then slide the Coupler Cover on the
Downrod until it rests on the Fan Motor Assembly
(Figure 5).
(Continued)
6" DOWNROD
CLEVIS
PIN
MOTOR
COUPLER
MOTOR
COUPLING
Figure 3
MOTOR COUPLER
Figure 4
COUPLER COVER
MOTOR
HOUSING
Figure 5
6
HAIRPIN
CLIP
CLEVIS
PIN
HAIRPIN
CLIP
LOOSEN SET
SCREWS (2)
6" DOWNROD
RETIGHTEN SET
SCREWS (2)
6" DOWNROD
COUPLER COVER
GROMMET
ETL Model No.: CF985L
