Removing The Grass Bag; Side-Discharging The Clippings - Toro TurfMaster 22210 Manual Del Operador

1. Bag rod
2. Remove the rear-discharge plug by pulling down
on the latch with your thumb and pulling the plug
out from the machine
3. Install the bag rod into the notches at the base
of the handle, and rock the bag back and forth
to ensure that the rod is seated at the bottom of
both notches; refer to
4. Lower the rear deflector until it rests on the
grass bag.

Removing the Grass Bag

To remove the bag, reverse the steps in Installing the
Grass Bag above.
Side-Discharging the
Clippings
Use the side discharge for cutting very tall grass.
Installing the Side-Discharge
Chute
Important:
Ensure that the rear-discharge plug is
in place before you recycle the clippings.
1. Shut off the engine and wait for all moving parts
to stop.
2. Remove the grass bag if it is installed on the
machine; refer to
(page 15).

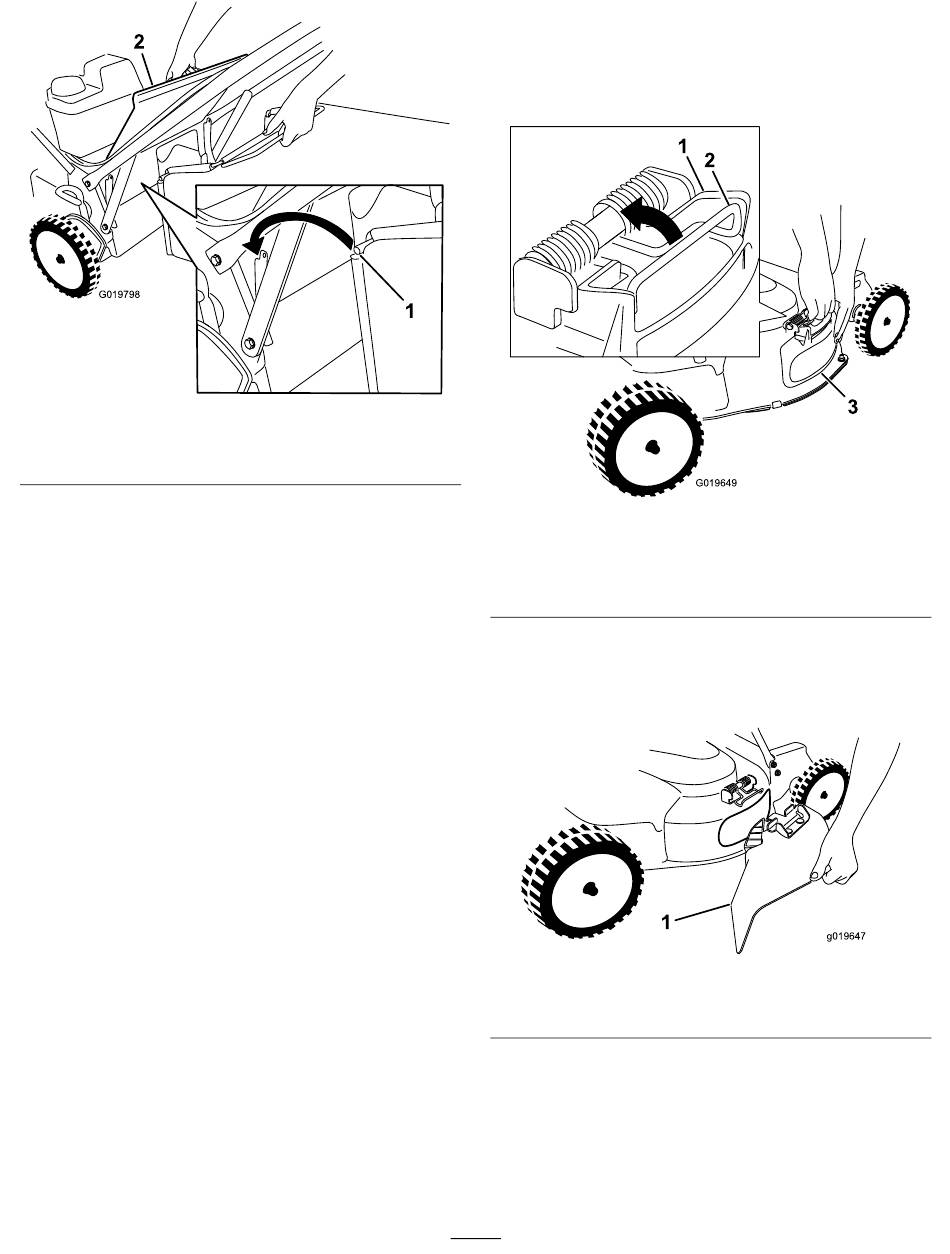

Figure 22
2. Rear deflector
(Figure 21).
Figure 22.
Removing the Grass Bag
3. Insert the rear-discharge plug; refer to
the Clippings (page
4. Remove the side-discharge deflector by pulling
up on the spring that holds the deflector in place
and removing the deflector
g019798
1. Top of the side-discharge
deflector
2. Spring
5. Install the side-discharge chute
pulling up on the spring, placing the chute over
the opening, and lowering the spring over the
tabs on top of the discharge chute.
1. Side-discharge chute
Removing the Side-Discharge
Chute
To remove the side-discharge chute, reverse the steps
in Installing the Side-discharge Chute.
15
14).
(Figure 23).
Figure 23
3. Side-discharge deflector
(Figure
Figure 24
Bagging
g019649
24) by
g019647
