3.

Product description

�.�

Application

This accessory set contains clamping and connection ac-
cessories for testing the most widely used common rail
pumps from Delphi in conjunction with EPS 815 and the
CRS 845 test set. In addition to the accessories, the set
includes the "EP Software 1 687 000 956" CD. This CD
contains the most up to date versions of the system soft-
ware (EPS944 and EPS945) and a sample test sequence
for testing Delphi common rail pumps. This sample test
sequence includes test steps predefined by Robert
Bosch GmbH but does not specify any setpoints or toler-
ances for the injection and return quantity. This informa-
tion must be determined by the tester or taken from data
sheets and added to the test steps.
For the sake of simplicity, the common rail pumps from
Delphi are referred to as Delphi pumps in this document.
�.2

Requirements

R
CRS 845 test set (1 687 001 845).
R
Familiarity with operation of the EPS 815 and
CRS 845 test set.
R
Good knowledge of the functioning of common rail
pumps and the handling and production of test se-
quences using the EPS945 system software.
Robert Bosch GmbH
Product description | � ��� ��� ��� � � ��� ��� ��� | �9 � ��� ��� ��� � � ��� ��� ��� | �9
�.�

Equipment description

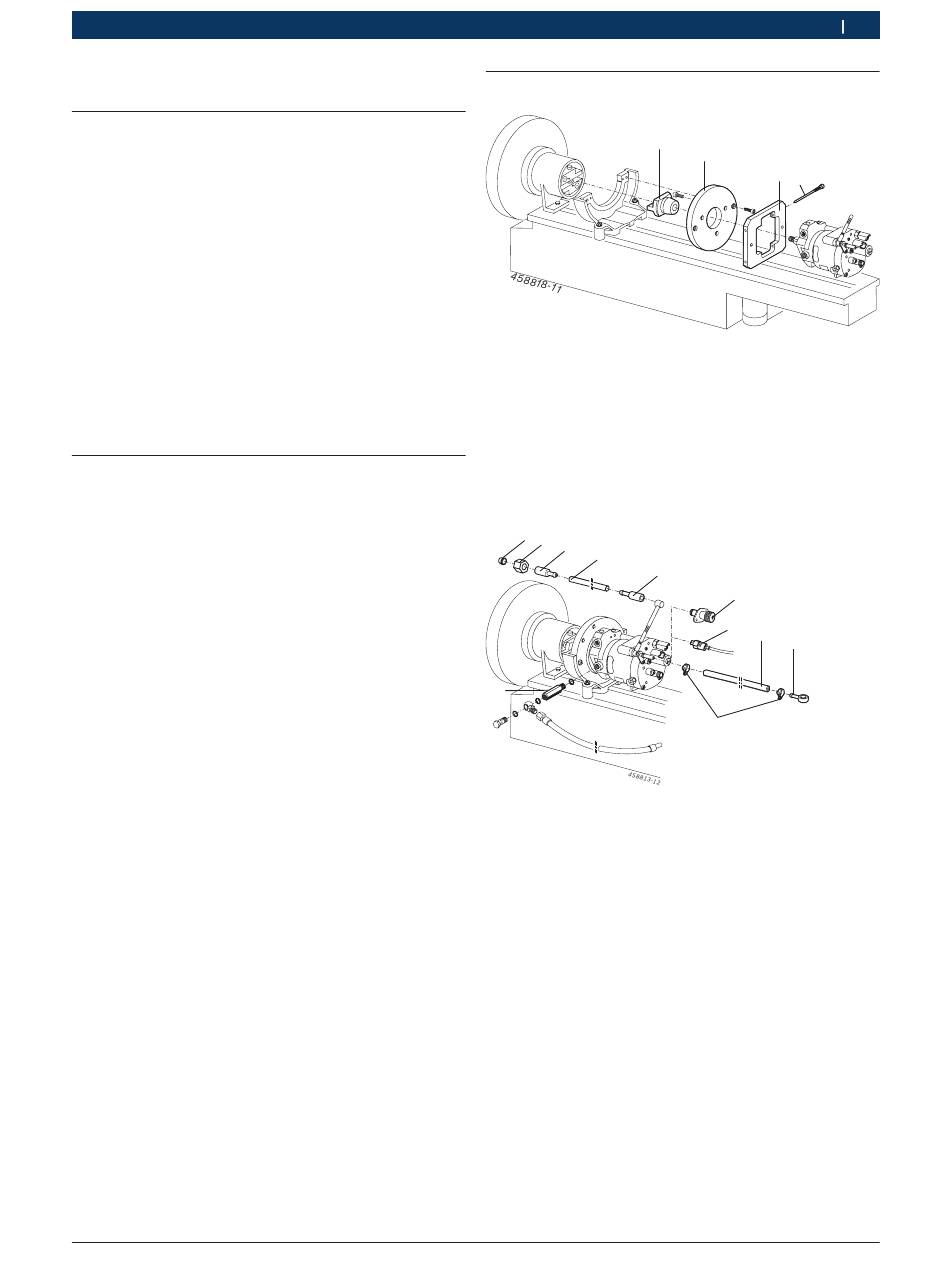

Fig. 1: Equipment description
1 Coupling half 1 686 430 050 or
Drive flange 1 685 702 091
Drive flange 1 685 702 094
2 Clamping flange 1 685 720 263
Clamping flange 1 685 720 289
Clamping flange 1 685 720 290
Clamping flange 1 685 720 291
3 Adapter board
4 Retaining pin 1 683 120 093 (x 2)
5 6
7
14
Fig. 2: Equipment description
5 Cutting ring (8 mm) 2 916 673 005
6 Union nut (8 mm) 2 915 101 006
7 Connection support 1 683 386 148
8 PVC-Hose (Ø 4x2 mm, 2 m) 5 899 885 042
9 Adapter 1 683 080 004
10 Electric adapter lead 1 684 460 270 or
Electric adapter lead 1 684 460 284
11 Pressure hose
Pressure hose
12 Ring spigot 1 683 385 050
13 Hose clamp 1 681 314 078
14 Connecting pipe 1 683 457 081
Optional for Delphi pump 9042A 041A.
1)
Depending on the pump, the pressure hose may also be used
2)
for the test oil inlet. The hose connection 1 683 386 130 for
the pressure hose 1 680 706 041 or the hose connection
1 683 386 131 for the pressure hose 1 680 706 042 is required
for connection to the test oil supply of the EPS 815. Both hose
connections are included in the scope of delivery.
1
2
1 681 000 076
1)
8
7
9
10
11
13
(Ø 8 mm, 2 m) 1 680 706 041
2)
(Ø 10 mm, 2 m) 1 680 706 042
2)
1 689 979 986
| �9 en
3 4
12
|
