Cleaning the runner:
To unblock or clean the runner, you only need to lift
the suction base. To do so, loosen the fixing screws
(as shown in (Fig. 4)).
Changing the oil:
The oil that lubricates the locks while the pump
operates under normal conditions should be
changed after 3000 h of operation or once a year.
To empty it, dismantle the runner and loosen the T
screw shown in (Fig. 4); and/or remove the lock.
Remember that once the rotating part of the lock has been
loosened, the oil may leak between the friction areas.
To aid extraction of the runner, once you have
removed the fixing screw you can screw in a M10
screw in the thread in the centre of the runner fitted
for this purpose.
The oil used is a white oil of mineral origin with
medicinal quality. The quantity is 0.7 l.
When changing the oil, use one with similar
characteristics that fulfils regional regulations.
If you dismantle the mechanical locks, you are
advised to replace them and change the oil.

8. DISPOSING OF THE PRODUCT

When the pump is eventually disposed of, please
note that it contains no toxic or polluting material. All
main components are material identified to allow
selective disposal.
This product or parts of it must be disposed of in an
environmentally sound way, use the waste collection
service. If this is not possible, contact the nearest
ESPA service workshop.

10. POSSIBLE FAULTS, CAUSES AND SOLUTIONS

1)
The pump does not start.
2)
Pump runs but there is no flow.
3)
Pump stops automatically.
4)
Pump does not deliver rated capacity.
1 2 3 4 POSSIBLE PROBLEM
X
Lack of electricity
X
X
Improper thermal protection
X
Float switch disconnected
X
X
Wet end blocked
X
Blocked float switch
X
Disconnected discharge pipe
X
Air trapped at the pump body
X
Check valve assembled way round
X
Pump partially covered of water
X
X
Inlet filter obstructed
Total manometric head higher than
X
expected
X
Impeller worn
X
Deteriorated discharge pipe

11. TECHNICAL DATA

Liquid temperature... .............................. 4ºC - 40ºC
Ambient temperature: ............................. 0ºC - 40ºC
Storage temperature: ........................... -10ºC - 50ºC

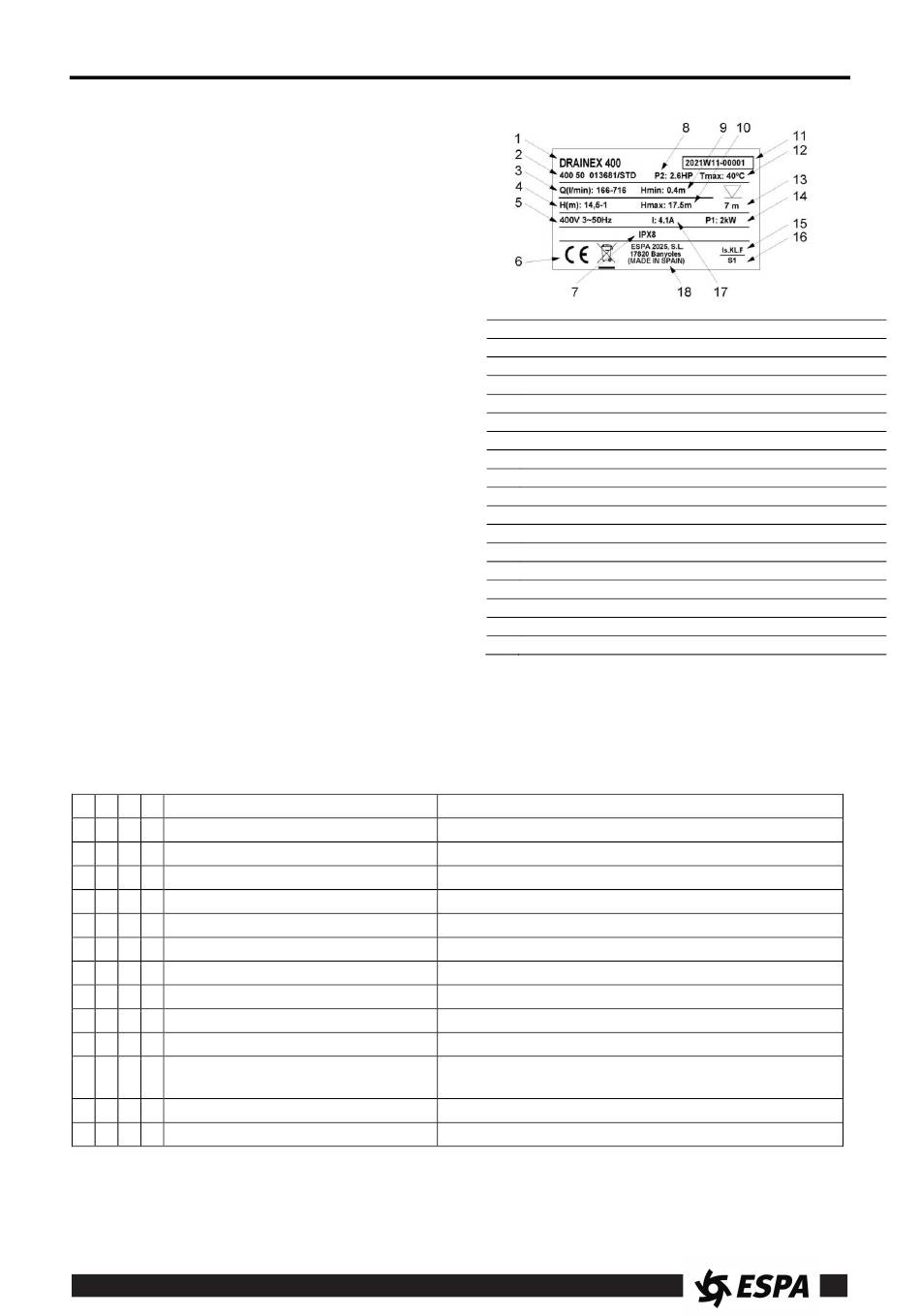

9.
PLATE
SHOWING
DESCRIPTION
1
Item reference
2
Voltage + frequency + item specifications
3
Flow
4
Pressure
5
Nominal voltage, no. stages, alternate current symbol and frequency
6
EC mark
7
Humidity protection level
8
Motor max. nominal output (P2)
9
Minimum working pressure
10
Maximum pressure
11
Year and week of manufacture + Pump serial number
12
Max. liquid temperature
13
Max. immersed depth
14
Electric pump unit absorbed power (P1)
15
Designated motor insulation
16
Continuous operation symbol
17
Maximum nominal intensity at nominal voltage
18
Name and address of vendor responsible for the product
SOLUTIONS
Replace fuses or switch RCCB (30mA)
Switch thermal protector or check that voltage is correct
Wait for water level to be back to adequate level
Call Service Engineer
Check the free operation of the float switch
Connect it and fix the discharge pipe correctly
Move the pump laterally to empty the air
Assemble the valve correctly
Submerge the pump or wait to have the suitable level
Clean the suction filter
Check the geometric head and loss of head
Contact a Service Engineer
Replace it by a new one
Ambient relative humidity, max.: ...................... 95%
Motor class I.
Other data see Figure 1.
13
CHARACTERISTICS
EN
