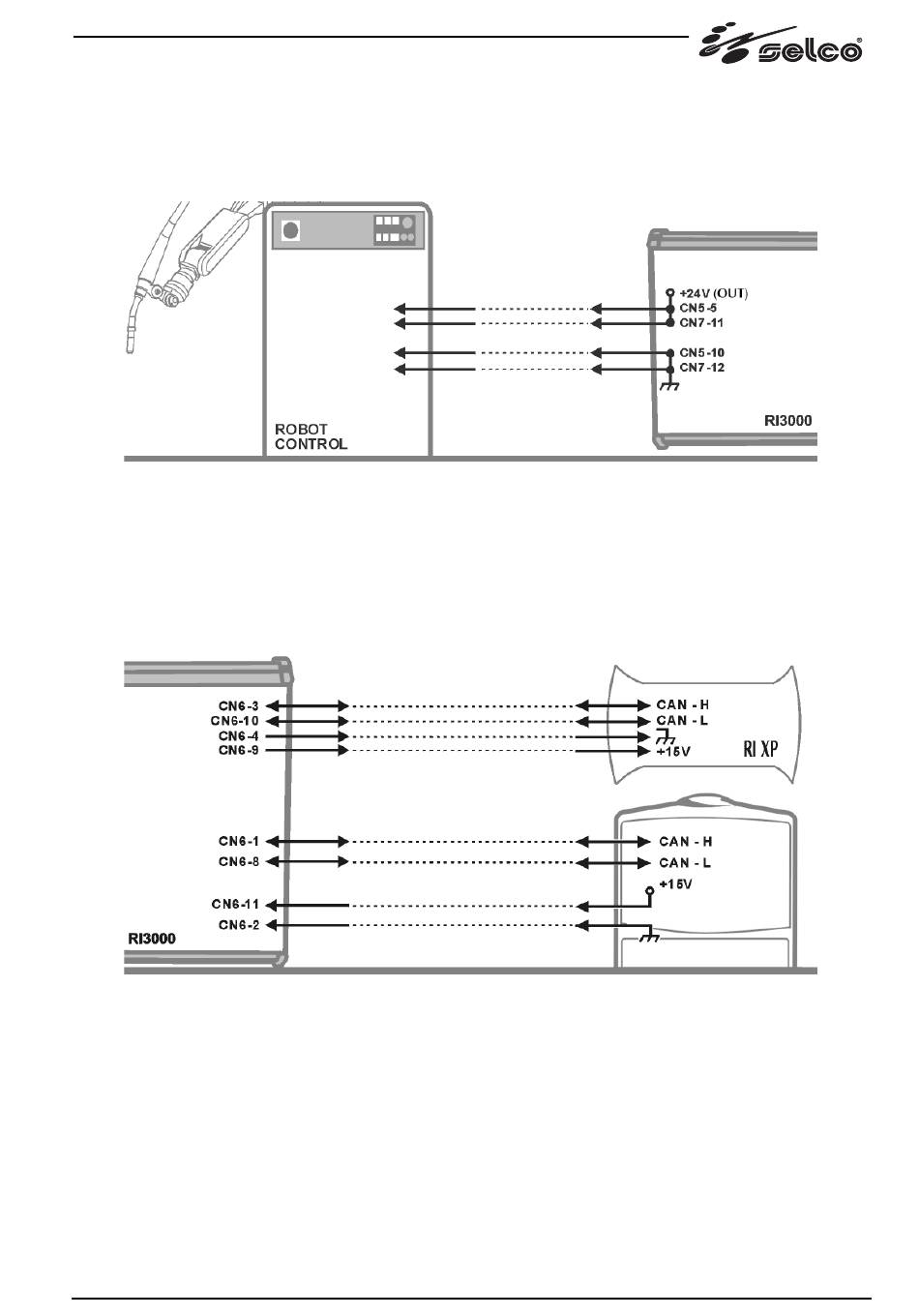

4.3 Auxiliary power supply for digital inputs and outputs (connector CN5/CN7)

Filtered and protected power supplies
CN5-5 +24V direct Voltage (OUT)
CN7-11 +24V direct Voltage (OUT)
CN5-10 Ground contact
CN7-12 Ground contact

4.4 Communication via CAN BUS (connector CN6)

CN6-1 CAN-H signal
CN6-2 Ground contact
CN6-8 CAN-L signal
CN6-9 +15V direct Voltage
CN6-3 CAN-H signal
CN6-4 Ground contact
CN6-10 CAN-L signal
CN6-11 +15V direct Voltage
