A. BATTERY REMOVAL
To remove the batteries for transporting or servicing:
1. Remove Batteries
a. Carefully remove seat (see Section O. Seat Removal).
b. Remove the shroud by first removing the six fasteners (Fig. 1). Then lift up on the
shroud.
c. Unplug and remove batteries from the chair (Fig. 2).
d. Lift batteries out of the frame.
2. Battery Installation
See Section X. Batteries, D for installation.
Batteries may weigh up to 39 lbs. Care must be taken to avoid injury when
lifting up on battery straps.
B. CENTER MOUNT HANGER ADJUSTMENT
1. Removal (Fig. 3)
a. Remove the four bolts (B) and slide the footrest out.
2. Height Adjustment (Fig. 4)
a. Remove the six securing bolts (C).
b. Move footplate to desired height.
c. Re-install bolts (C) through desired holes.
3. Calf Pad Adjustment (Fig. 5)
a. Remove the two securing bolts (D).
b. Move calf pads to desired height.
c. Re-install bolts (D) through desired holes.
119832 Rev. A

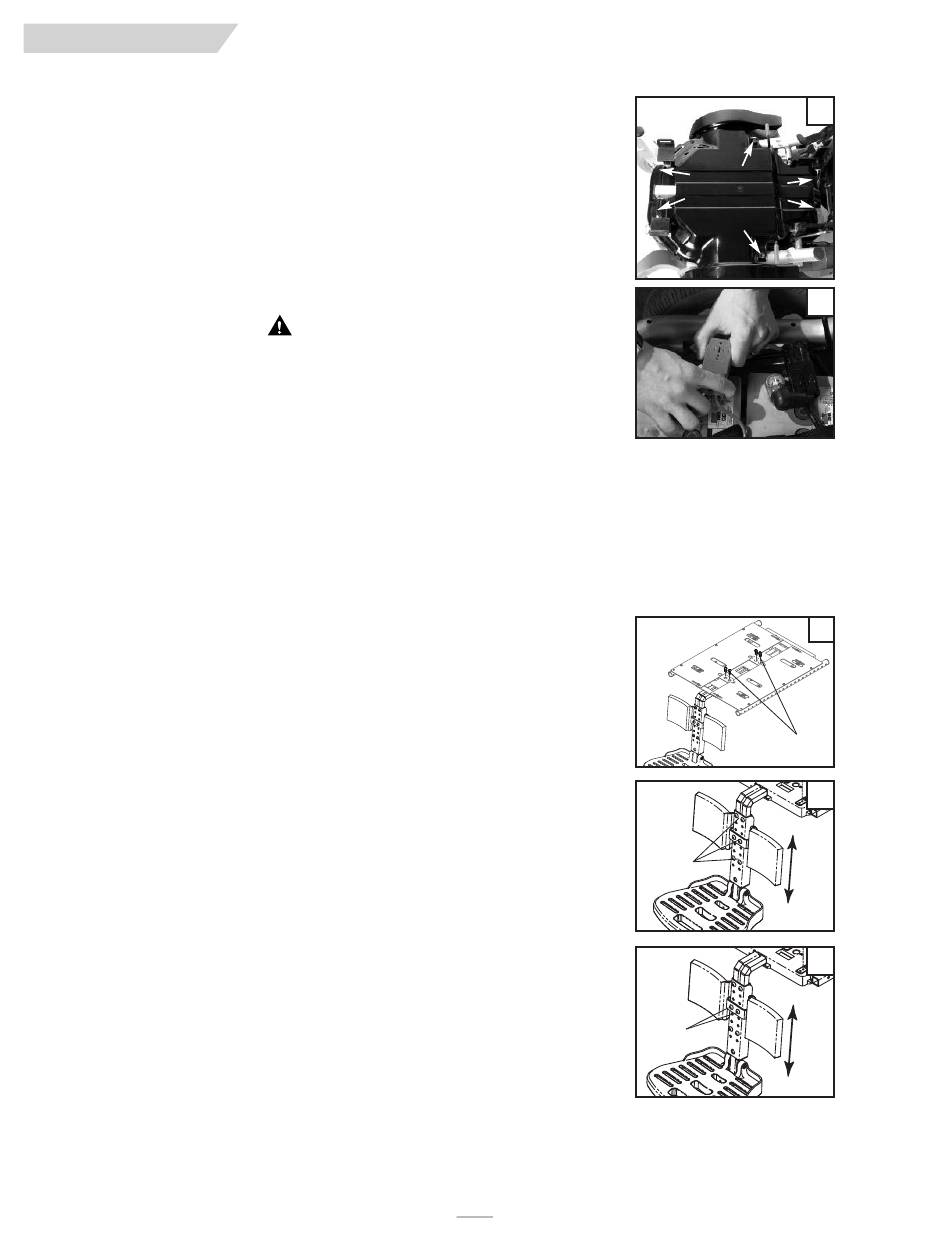

(Figures 1, 2)
WARNING
14
1
2
3
B
4
C
5
D
