XR-151
A-B-C-D

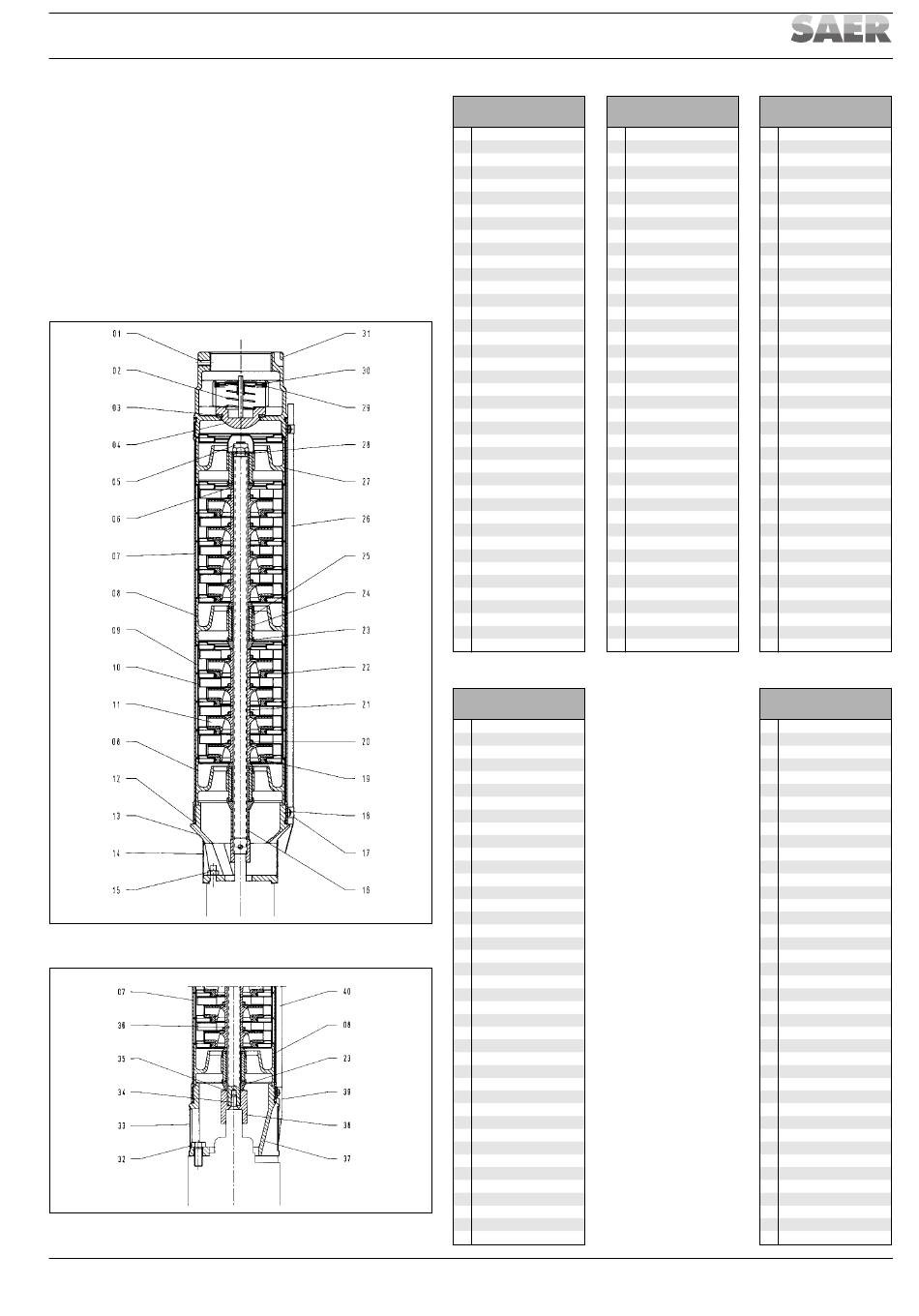

NOMENCLATURA PARTI DI RICAMBIO
SPARE PART LIST
ERSATZTEILLISTE
NOMENCLATURA REPUESTOS
NOMENCLATURE PIECES DE RECHANGE
Con motore MS 100 (4")
• With motor MS 100 (4") • Mit Motor MS 100 (4") • Con motor MS 100 (4") • Avec moteur MS 100 (4")
Con motore MS 152 (6")
• With motor MS 152 (6") • Mit Motor MS 152 (6") • Con motor MS 152 (6") • Avec moteur MS 152 (6")
6"
COMPONENTE
1
Vite senza testa
1
Headless screw
2
Molla
2
Spring
3
Guarnizione valvola
3
Valve gasket
4
Valvola
4
Valve
5
Dado
5
Nut
6
Parasabbia corto
6
Short sand guard
7
Tubo pompa
7
Pump pipe
8
Supporto intermedio
8
Intermediate support
9
Mantello diffusore
9
Diffuser shell
10
Diffusore
10
Diffuser
11
Girante
11
Impeller
12
Guarnizione OR
12
OR joint
13
Supporto aspirazione (4")
13
Suction support (4")
14
Griglia (4")
14
Grid (4")
15
Vite
15
Screw
16
Distanziale aspirazione (4")
16
Suction spacer (4")
17
Fascetta copricavo
17
Cable cover clamp
18
Vite
18
Screw
19
Anello di usura girante
19
Impeller wearing ring
20
Anello di usura mozzo
20
Impeller hub wearing ring
21
Albero (4")
21
Shaft (4")
22
Coperchio diffusore
22
Diffuser cover
23
Parasabbia lungo
23
Long sand guard
24
Cuscinetto
24
Bearing
25
Bussola
25
Bushing
26
Copricavo
26
Cable cover
27
Supporto mandata
27
Delivery support
28
Rondella bloccagirante
28
Impeller holding washer
29
Coprimolla
29
Spring cover
30
Anello seeger
30
Snap ring
31
Bocca di mandata
31
Outlet
32
Vite
32
Screw
33
Griglia (6")
33
Grid (6")
34
Vite
34
Screw
35
Rondella
35
Washer
36
Albero (6")
36
Shaft (6")
37
Supporto aspirazione (6")
37
Suction support (6")
38
Giunto (6")
38
Coupling (6")
39
Fascetta terminale (6")
39
Terminal clamp (6")
40
Copricavo (6")
40
Cable cover (6")
41
Giunto (4")
41
Coupling (4")
COMPONENTE
1
Tornillo sin cabeza
2
Muelle
3
Emapaquetadura valvula
4
Valvula
5
Tuerca
6
Pararena corto
7
Tubo bomba
8
Soporte intermedio
9
Faldon difusor
10
Difusor
11
Impulsor
12
Empaquetadura OR
13
Soporte aspiracion (4")
14
Rejilla (4")
15
Tornillo
16
Espaciador aspiracion (4")
17
Abrazadera cubrecable
18
Tornillo
19
Anillo de desgaste impulsor
20
Anillo de desgaste cubo impulsor
21
Eje (4")
22
Tapa difusor
23
Pararena largo
24
Cojinete
25
Casquillo
26
Cubrecable
27
Soporte de descarga
28
Arandela bloqueo impulsores
29
Tapa muelle
30
Anillo seger
31
Orificio de descarga
32
Tornillo
33
Rejilla (6")
34
Tornillo
35
Arandela
36
Eje (6")
37
Soporte aspiracion (6")
38
Manguito (6")
39
Abrazadera terminal (6")
40
Cubrecable (6")
41
Manguito (4")
ELETTROPOMPE
COMPONENT
BAUTEIL
1
Gewindestift
2
Federkeil
3
Ventilsdichtung
4
Ventil
5
Mutter
6
Kurzer Sanddeckel
7
Pumpenrohr
8
Zwischenlager
9
Diffusordeckel
10
Diffusor
11
Laufrad
12
OR-Dichtung
13
Saugslager (4")
14
Gatter (4")
15
Schraube
16
Saugen - Distanzstück (4")
17
Kabeldeckelschelle
18
Schraube
19
Laufrad-Verschleissring
20
Nabelaufrad-Verschleissring
21
Welle (4")
22
Diffusordeckel
23
Langer Sanddeckel
24
Lagerbuchse
25
Buchse
26
Kabeldeckel
27
Druckerlager
28
Laufräderschloss-Scheibe
29
Federkeildeckel
30
Seeger
31
Druckeröffnung
32
Schraube
33
Gatter (6")
34
Schraube
35
Scheibe
36
Welle (6")
37
Saugslager (6")
38
Kupplung (6")
39
End-Schelle (6")
40
Kabeldeckel (6")
41
Kupplung (4")
COMPOSANT
1
Vis sans tête
2
Ressort
3
Joint clapet
4
Clapet
5
Ecrou
6
Pare-sâble court
7
Tuyau pompe
8
Support intermédiaire
9
Manteau diffuseur
10
Diffuseur
11
Turbine
12
Joint OR
13
Support d'aspiration (4")
14
Grille (4")
15
Vis
16
Entretoise aspiration (4")
17
Bande couvre - câble
18
Vis
19
Bague d'usure turbine
20
Bague d'usure moyeu
21
Arbre (4")
22
Couvercle diffuseur
23
Pare-sâble long
24
Roulement
25
Douille
26
Couvre - câble
27
Support de refoulement
28
Rondelle blocage turbines
29
Couvercle ressort
30
Bague seeger
31
Orifice de refoulement
32
Vis
33
Grille (6")
34
Vis
35
Rondelle
36
Arbre (6")
37
Support d'aspiration (6")
38
Accouplement (6")
39
Bande terminale (6")
40
Couvre - Câ ble (6")
41
Accouplement (4")
®
