A-2

SAFETY PRECAUTIONS

WARNING
ELECTRIC SHOCK CAN KILL.
• Turn the input power OFF at the
welding power source before installa-
tion or changing drive rolls and/or
guides.
• Do not touch electrically live parts.
• When inching with the gun trigger, electrode and
drive mechanism are "hot" to work and ground
and could remain energized several seconds
after the gun trigger is released.
------------------------------------------------------------------------

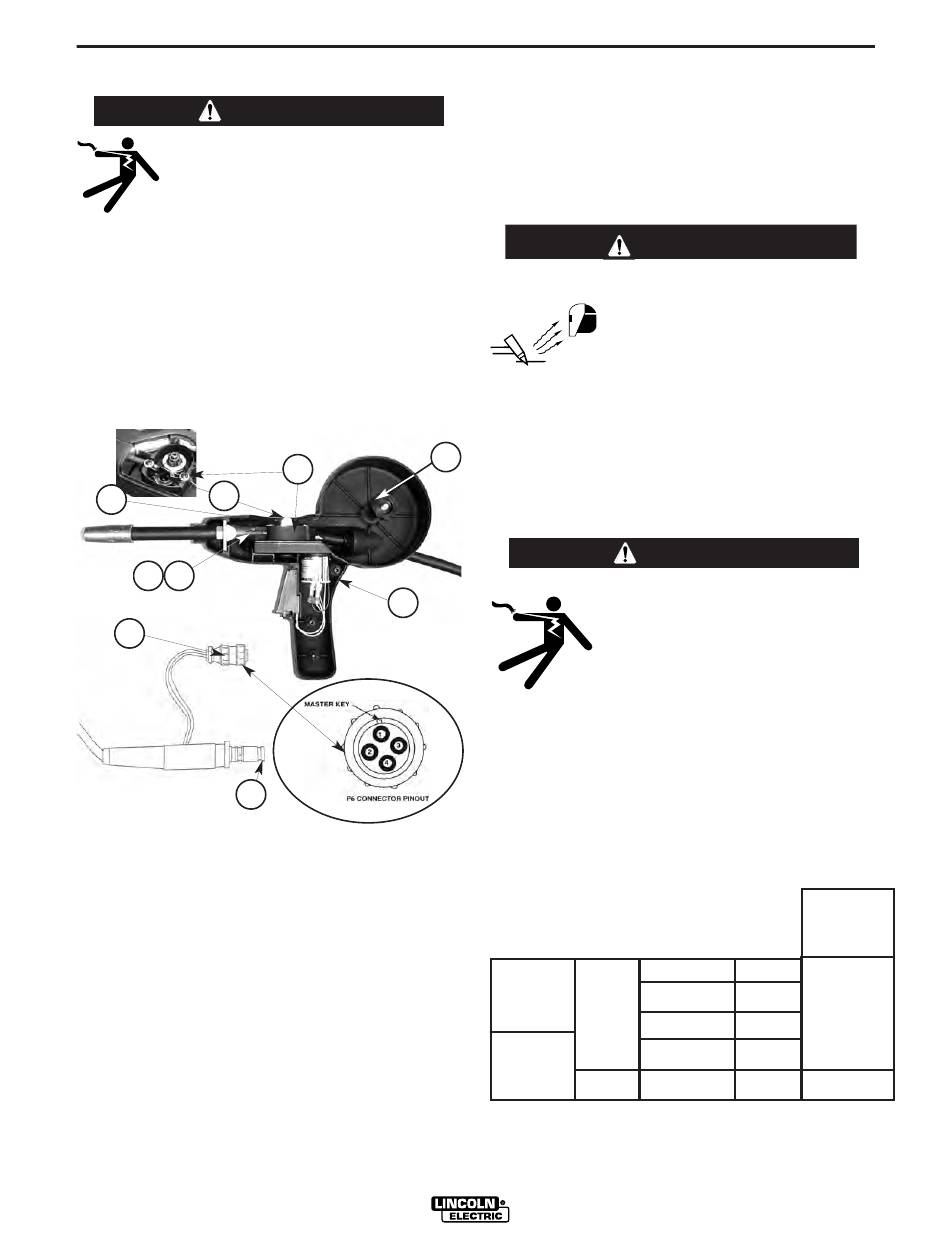

ASSEMBLY OF ITEMS INSIDE THE MAGNUM
SPOOL GUN
FIGURE A.3
3
2
1
8
5
Machine Connections
6
1. Liner Assembly feeds all specified wire.
2. Drive Roll: This Drive Roll feeds all specified wires.
3. Idle Roll Assembly: Non-adjustable tension setting
for all specified wires
4. Incoming Wire Guide: Highly wear-resistant.
5. P6 Connector Control Leads: Motor Power and
Trigger. (See Maintenance Section for more details)
6. Welding Power and Shielding Gas Machine connec-
tion (Sealed with 2 o-rings).
7. Locking Knob: Independently retains the wire spool
on the spindle.
8. Liner Assembly: Includes a gas seal with the cable
connector and is the outgoing wire guide.
INSTALLATION
7
4
9
Spool Cover and left
handle removed
MAGNUM 100SG SPOOL GUN
9. Only 4 sub-assemblies: gun tube; cable; wire drive;
trigger.
10. Conical spring (not shown) serves as the spool
brake (use only with aluminum alloy 5356).
SAFETY PRECAUTIONS

WELDING MACHINES

CAUTION
• Read and understand the welding
machine's instruction manual and
all hazard warnings on equipment
and in the manual.
• Wear the proper personal protec-
tive equipment for welding, includ-
ing but not limited to, safety glass-
es, hearing protection, welding
helmet, welding gloves, and weld-
ing leathers.
------------------------------------------------------------------------
SPOOL GUN
WARNING
ELECTRIC SHOCK CAN KILL.
• The spool of wire may fall out of
the gun if the locking knob is not
installed.
• Metal parts may be at welding
voltage (electrically "hot").
• Metal parts remain at welding voltage for sever-
al seconds after trigger is released. Read warn-
ing label on gun.
• This product shall not be used in precipitation,
or in wet or damp locations.
------------------------------------------------------------------------

RECOMMENDED WELDING MACHINES

PM180T
Preferred
PM180
Industrial
PM140T
PM140C
Acceptable
Retail
Weld-Pak 125
*If the welding machine is not factory-equipped with a gas solenoid valve,
then the field-installed K2526-1 MIG Conversion Kit (includes gas sole-
noid valve) must be installed before the spool gun can be used.
A-2
Factory-
Installed
Gas Solenoid
Valve*
K2472-1
K2473-1
yes
K2470-1
K2471-1
K2513-1
no
