Tools required

– Spirit level
– Power or hammer drill
– Screwdriver
56

Installing

Installing the wall mount

Installing the basic wall mount

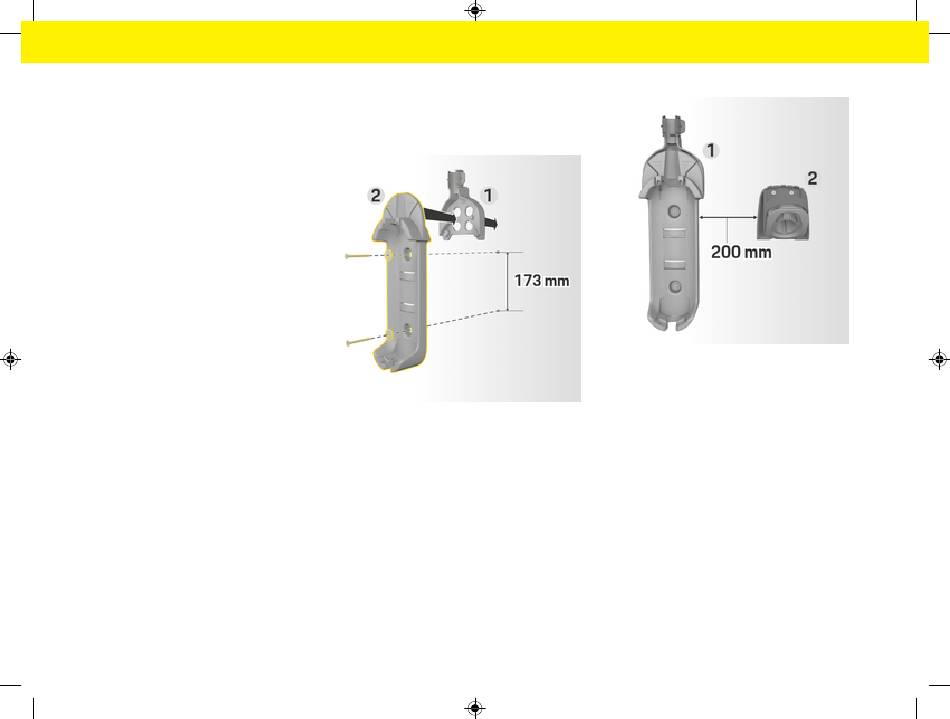

Fig. 26 Drilling dimensions
1. Mark the drill holes on the wall.
2. Drill the mounting holes and insert wall plugs.
3. Press the basic wall mount (Fig. 26) into the
2
cable guide (Fig. 26) from the front.
1
4. Screw the basic wall mount onto the wall.
Installing the connector fastener
Fig. 27 Distance between wall mount and connector
fastener
When installing the connector fastener, ensure a dis-
tance of 200 mm from the basic wall mount.
