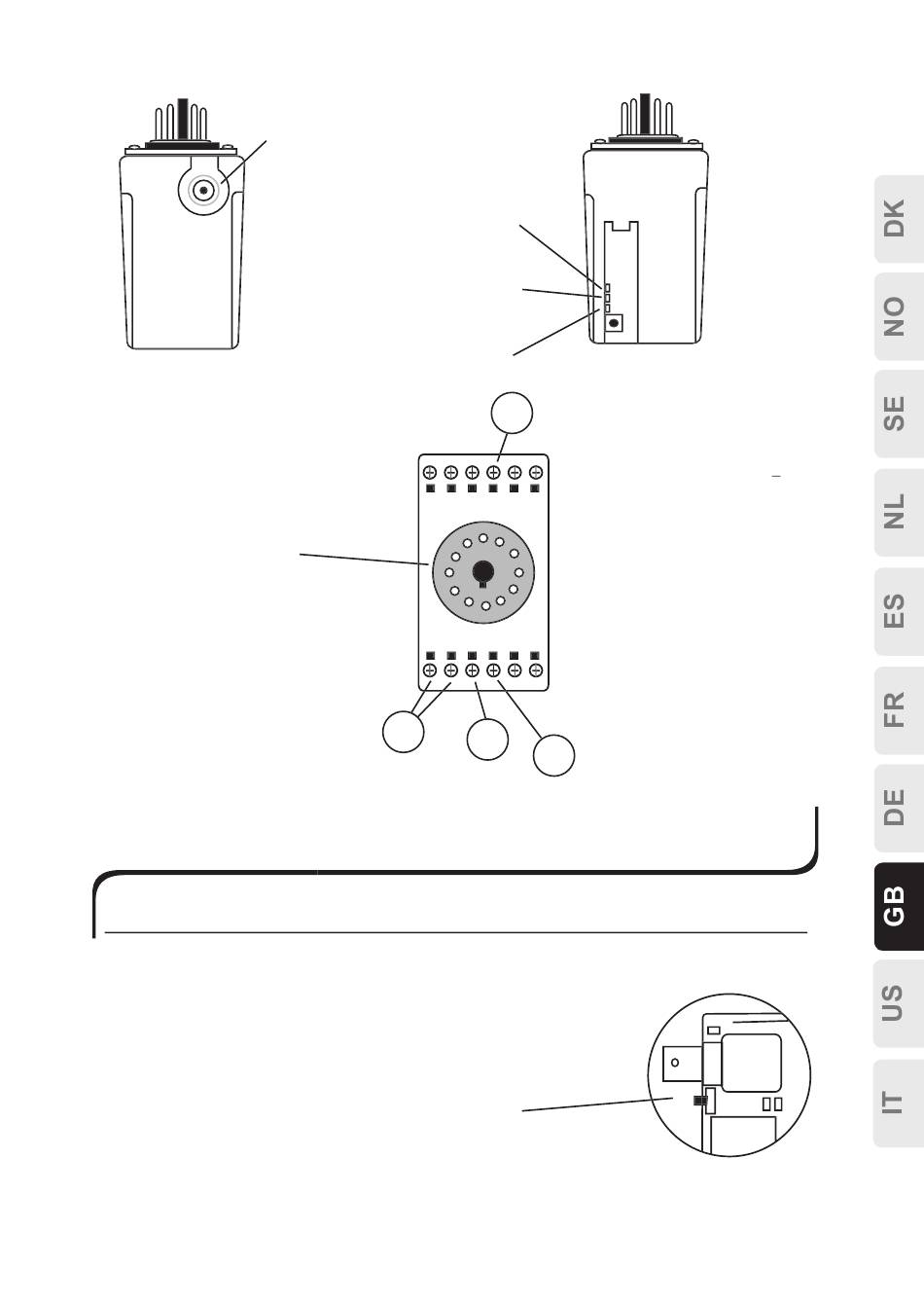

BNC connector.
Side 2
Voltage connection
11-pin terminal
5. 12-24V AC/DC
6. 12-24V AC/DC
10. NO
11. C
PROGRAMMING RECEIVER T60RX-03ADL,
T60RX-01APL AND T60RX-01ARL
LEARNING ADJUSTABLE AND FIXED INDIVIDUAL CODE
Register adjustable code:
1.Press the self-instruction button for at least 0.3 sec,
at most 4 sec.
2. Release the button.
-Programming mode, red LED comes on.
3. Press the required function button.
-The red LED flashes three times quickly.
4.The adjustable code is now saved.
-The red LED flashes. once every other sec.
The red LED shows the
programming status.
The yellow LED indicates
the supply voltage.
The green LED indicates
signal reception.
