SUPPLEMENT FOR THE 460 SYSTEM
T60TX-15DML*
Type 401RVL9 and 403RVL9 transmitter with knob 1-10:

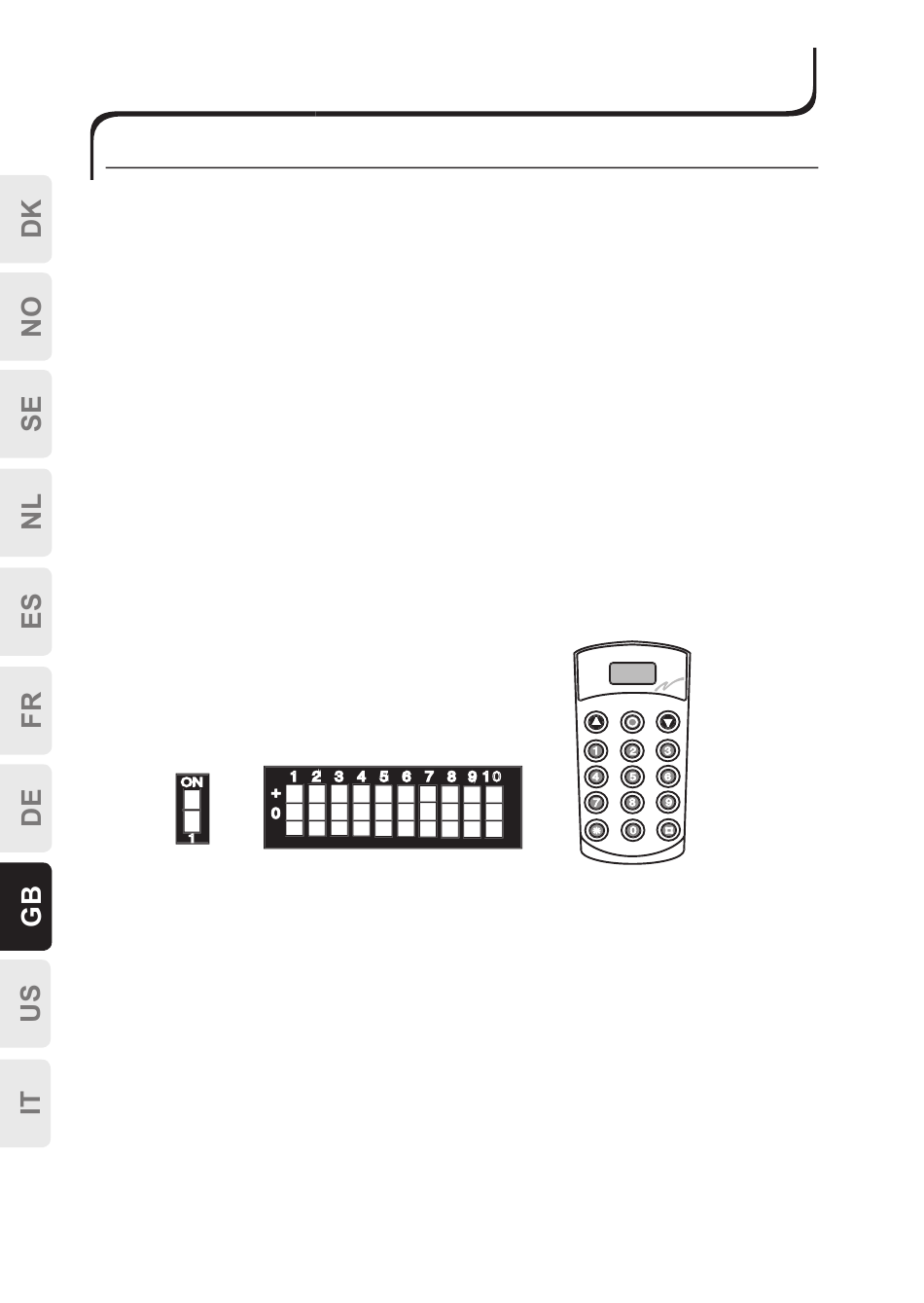

1. Check that the transmitter's system switch (A) is in position 1 (OFF).
2. Check that the code switch (B) 9 is in the 0 (zero) position.
3. Set code switch 10 to either the minus or plus position depending on
whether you are using A or B coding on the old transmitter (robust
transmitter).
4. Set a code on the transmitter's 4 first switches (code switches 1-4)
which are identical to the receiver's (code switches 5-8 are not used).
5.Check that the relay is actuated when one of the transmitter's buttons
is pressed in.The digits on the transmitter display correspond to the
knob. Press down one figure followed by a transmitter button and
verify that the corresponding relay is actuated.
See code table 1-10,Appendix A.
* Transmitter T60TX-15DML in system T60 is compatible with transmitter
Type 401RVL9 and 403RVL9 in system 460.
(A)
ON
+
0
1
Type 401RVL9 and 403RVL9 with knob 0-15:
1. Check that the transmitter's system switch (A) is in position 1 (OFF).
2. Check that the code switch (B) 9 is in the - (minus) position.
3. Set code switch 10 to either the minus or plus position depending on
whether you are using A or B coding on the old transmitter (robust trans-
mitter).
4. Set a code on the transmitter's 4 first switches (code switches 1-4) which
are identical to the receiver's (code switches 5-8 are not used).
5. Check that the relay is actuated when one of the transmitter's buttons is
pressed in.
See code table 0-15,Appendix B.
172
(B)
1 2 3 4 5 6 7 8 9 1 0
