E N G L I S H

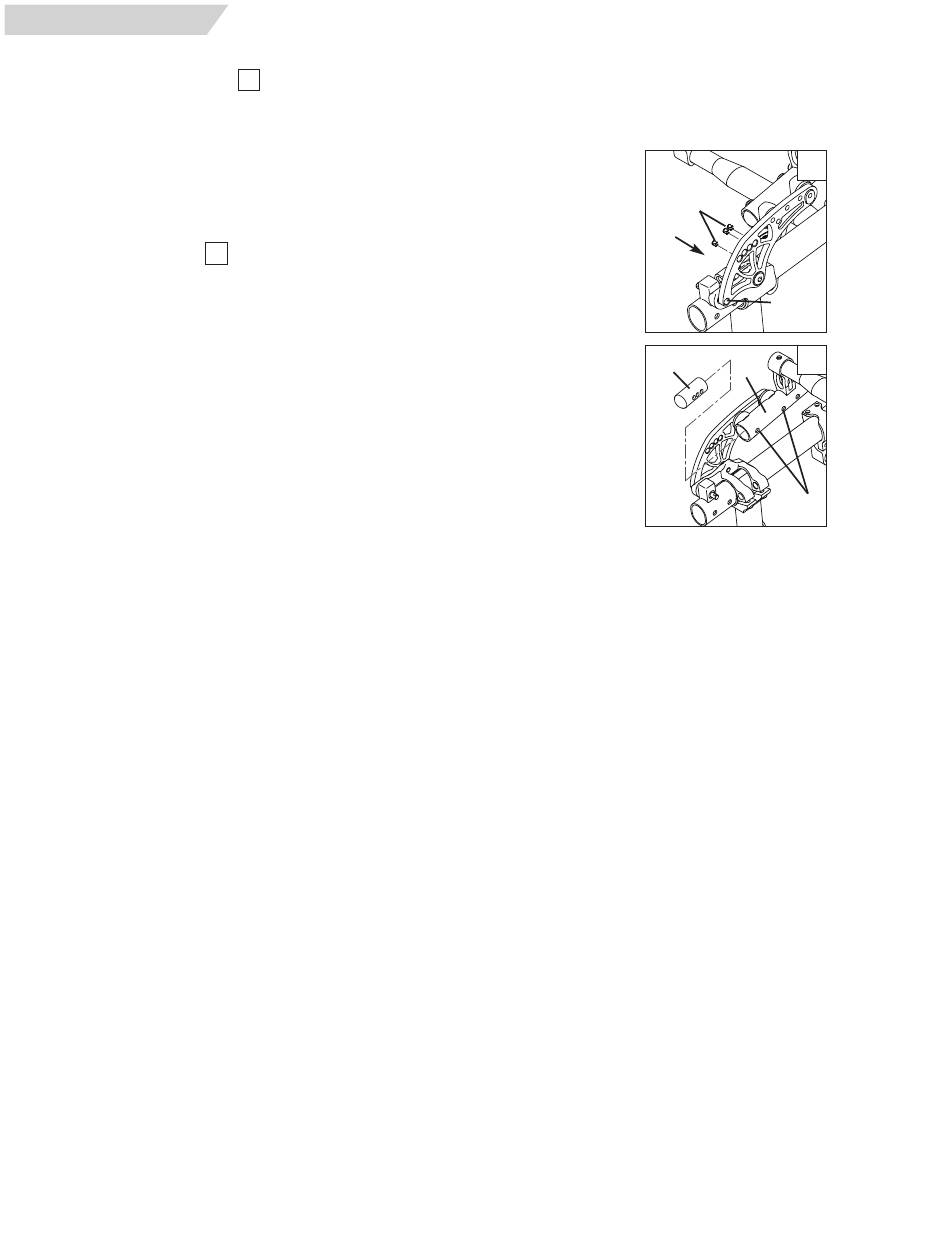

Backrest Angle Preset Plugs
The preset plugs allow you to unemploy the backrest bracket holes you do not wish to use.
This allows the backrest to automatically lock into your desired angle position after unfolding.
1. Determine which backrest bracket holes you do not want to use.
2. Insert plugs (G) into the predetermined holes from the chair side of the bracket (H).
3. To ensure the backrest will lock in the folded position, do not insert a plug into the
lowest hole position (I).
Backrest Adjuster Stop
The preset stop allows the ability to place a firm stop at desired angle. The hole pattern in
the backrest adjuster stop corresponds with the hole pattern in the backrest bracket (4 holes
for each piece).
1. Determine the desired Stop Position.
2. Remove the lower backrest bracket butten head fastener (K) and loosen the top slightly
(K).
3. Adjust the Backrest Adjuster Stop (J) into the Backrest Frame (L) to desired position
4. Insert backrest bracket hardware (K) and retighten to 62 in.-lbs (7 Nm)
5. Repeat process on opposite side. Ensure both sides are using the same Stop Position.
R. CUSHION
(Optional)
Place cushion on seat sling with VELCRO® side down. The beveled edge of the cushion
should be in front. Press firmly into place.
S. STORAGE TIPS
1. Store your chair in a clean, dry area. If you fail to do so, parts may rust
or corrode.
2. Before using your chair, make sure it is in proper working order. Inspect and
service all items on the "Maintenance Chart".
3. If stored for more than three months, have your chair inspected by an authorized
supplier before use.
T. INSPECT
After the wheelchair is assembled and adjusted, it should roll smoothly and easily.
All acces-sories should also perform smoothly. If you have any problems, follow
these procedures:
a. Review assembly and adjustment sections to make sure chair was properly
prepared.
b. Review troubleshooting guide.
c. If your problem persists, contact your authorized supplier. If you still have a
problem after contacting your authorized supplier, contact Sunrise customer
service. See the introduction page for details on how to contact your
authorized supplier or Sunrise customer service.
