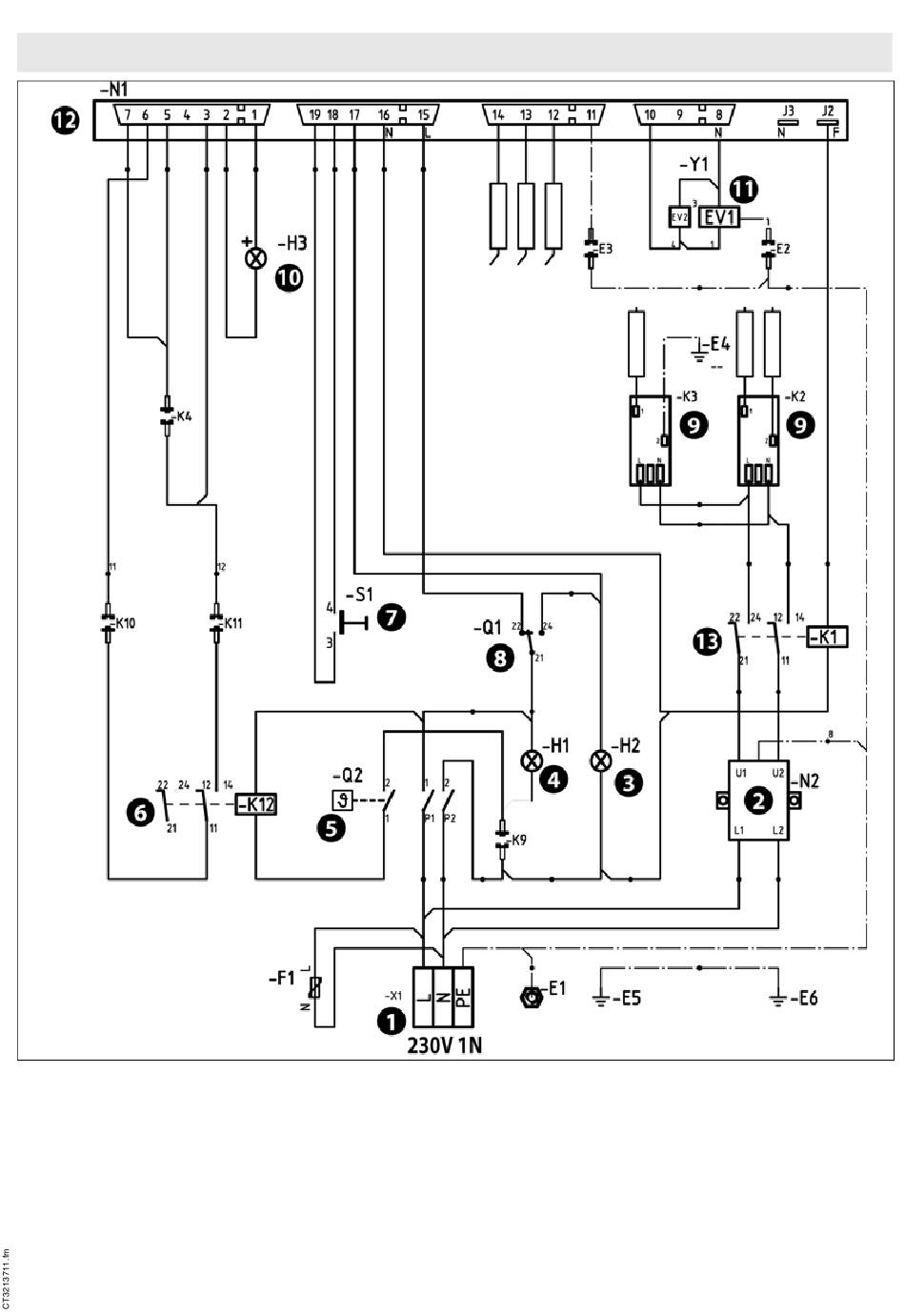

SCHEMA ELETTRICO (091FR1I) - ELECTRIC DIAGRAM (091FR1I) - SCHALTBILD (091FR1I) -
SCHÉMA ÈLECTRIQUE (091FR1I) - ESQUEMA ELÉCTRICO (091FR1I)
1) Morsettiera - Terminal board - Klemmenleiste - Bornier - Tablero de
bornes
2) Filtro LC - LC Filter - Filter LC - Filtre LC - Filtro LC
3) Lampada spia termostato - Thermostat indicator light - Kontrollleuchte
Thermostat - Voyant du thermostat - Lámpara testigo termostato.
4) Lampada spia di rete - Mains power light - Kontrollleuchte Stromzufuhr
- Voyant de réseau - Lámpara testigo de red.
5) Interruttore termostatatato - Thermostat switch - Schalter Thermostat
- Interrupteur du thermostat - Interruptor termostato.
6) Relè - Relay - Relais - Relais - Relé.
7) Thermostat switch - Schalter Thermostat - Interrupteur du thermostat
- Interruptor termostato.
8) Pulsante Reset - Reset button - Reset-Taste - Bouton « reset » -
Botón de Reset.
9) Termostato di sicurezza - Safety thermostat - Sicherheitsthermostat -
Thermostat de sécurité - Termostato de seguridad.
10)Accenditore elettronico - Electronic ignition device - Elektronischer
Anzünder - Allumeur électronique - Encendedor electrónico
11)Lampada spia arancio - Orange light - Kontrollleuchte Orange - Voy-
ant orange - Piloto Naranja.
12) Elettrovalvola del gas con contatto di accensione - Gas solenoid
valve with ignition contact - Gas-Magnetventil mit Zündkontakt
Électrovalve du gaz avec contact d'allumage - Electroválvula del gas
con contacto de encendido.
13) Controllo combustione - Burner control board - Brennsteuerung -
Contrôle combustion - Control combustión.
14) Relè - Relay - Relais - Relais - Relé.
-
-
