Important
Before making any type of adjustment, acti-
vate all the safety devices provided and de-
cide whether staff at work and those in the
vicinity should be informed. In particular,
Important
This adjustment is only required if the type
of gas to be connected is different from that
used for testing after the conversion proce
ure has been carried out (see page 21).
Before making this adjustment, check that
the gas supply pressure is the same as the
rated pressure for the type of gas in
use (see table at back of manual).
To carry out this operation, proceed as fol-
lows.
1 - Turn off the gas supply tap.
2 - Open the hatch (A).
3 - Undo the screw (D) of the pressure measure-
ment point (intake pressure) and the screw (E)
of the pressure measurement point (output
pressure).
IT
GB
DE
FR
ES
English

ADJUSTMENTS

RECOMMENDATIONS FOR ADJUSTMENTS

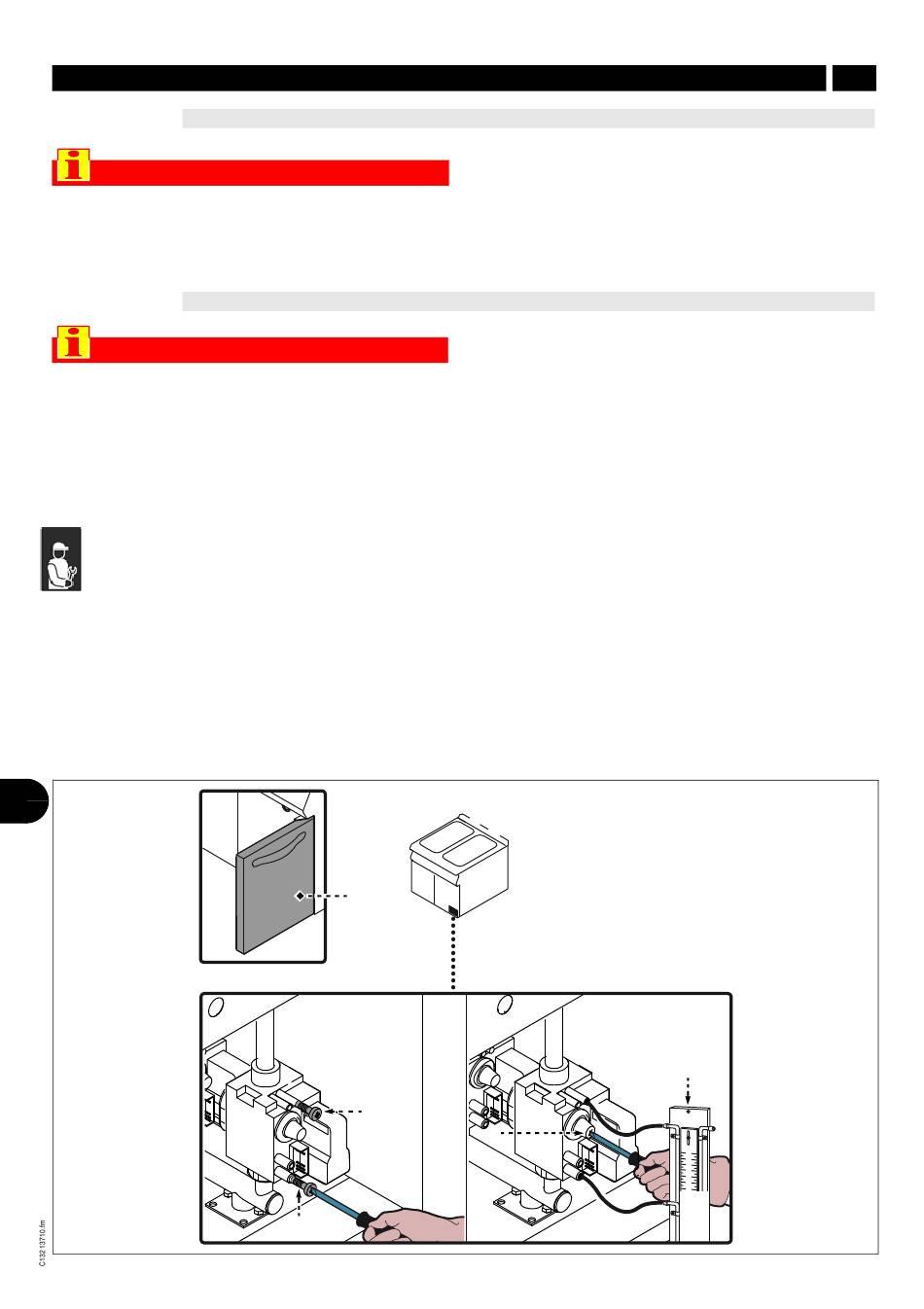

ADJUSTING GAS SOLENOID VALVE

A
E
D
turn off the gas supply tap and prevent ac-
cess to all devices which might cause un-
expected health and safety hazards if
turned on.
4 - Connect the pressure gauge (F) to the pressure
measurement point.
5 - Turn the gas supply tap back on.
6 - Switch on the appliance (see page 9) and carry
out a cooking cycle without food at the maxi-
mum temperature.
7 - Turn the screw (G) and check that the pressure
gauge (F) reading complies with the values
(see table at back of manual).
8 - Switch off the appliance, turn off the gas supply
tap and disconnect the pressure gauge (F).
9 - Retighten the screws (D-E).
10-Close the door (A) when the operation is com-
plete.
G
