– In order to ensure secure fastening, check the
condition of the wall before installing.
– Install the wall mount so that it is not near
pathways and the charging cables do not cross
any pathways.
– Install the wall mount so that the distance
between the plug and the socket does not exceed
the length of the available supply cable.
– Install the connector fastener as close as possible
to the preferred vehicle parking position. Take the
orientation of the vehicle into account.
– The distance of the electrical socket from the
floor and ceiling should be selected in compliance
with national regulations and standards so that
comfortable use is ensured.
– The installation of a residual current device at the
connection is recommended.
f Refer to chapter "Safety Instructions" on
page 29.

Tools required

– Spirit level
– Power or hammer drill
– Screwdriver

Installing the wall mount

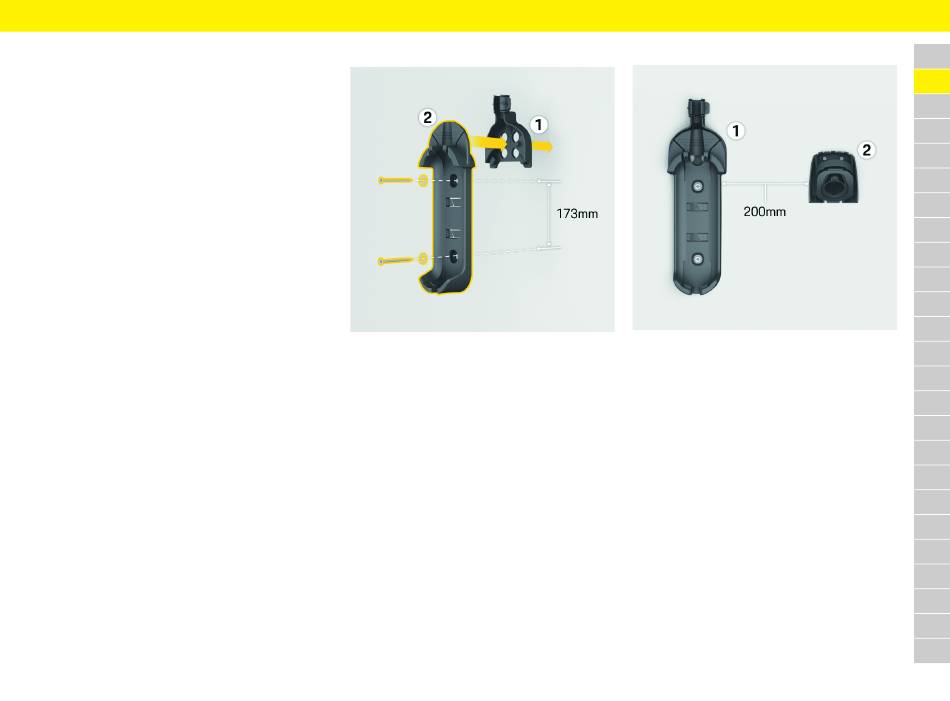

Fig. 13: Drilling dimensions
1. Mark the drill holes on the wall.
2. Drill the mounting holes and insert wall plugs.
3. Press wall mount 2 from the front into the cable
guide 1.
4. Screw the wall mount onto the wall.
Installation Instructions
Installing the connector fastener
Fig. 14: Distance from wall mount to connector fastener
During the installation of the connector fastener,
keep a 200 mm distance from the wall mount.
