ULTRASOUND SPATIAL PATTERN

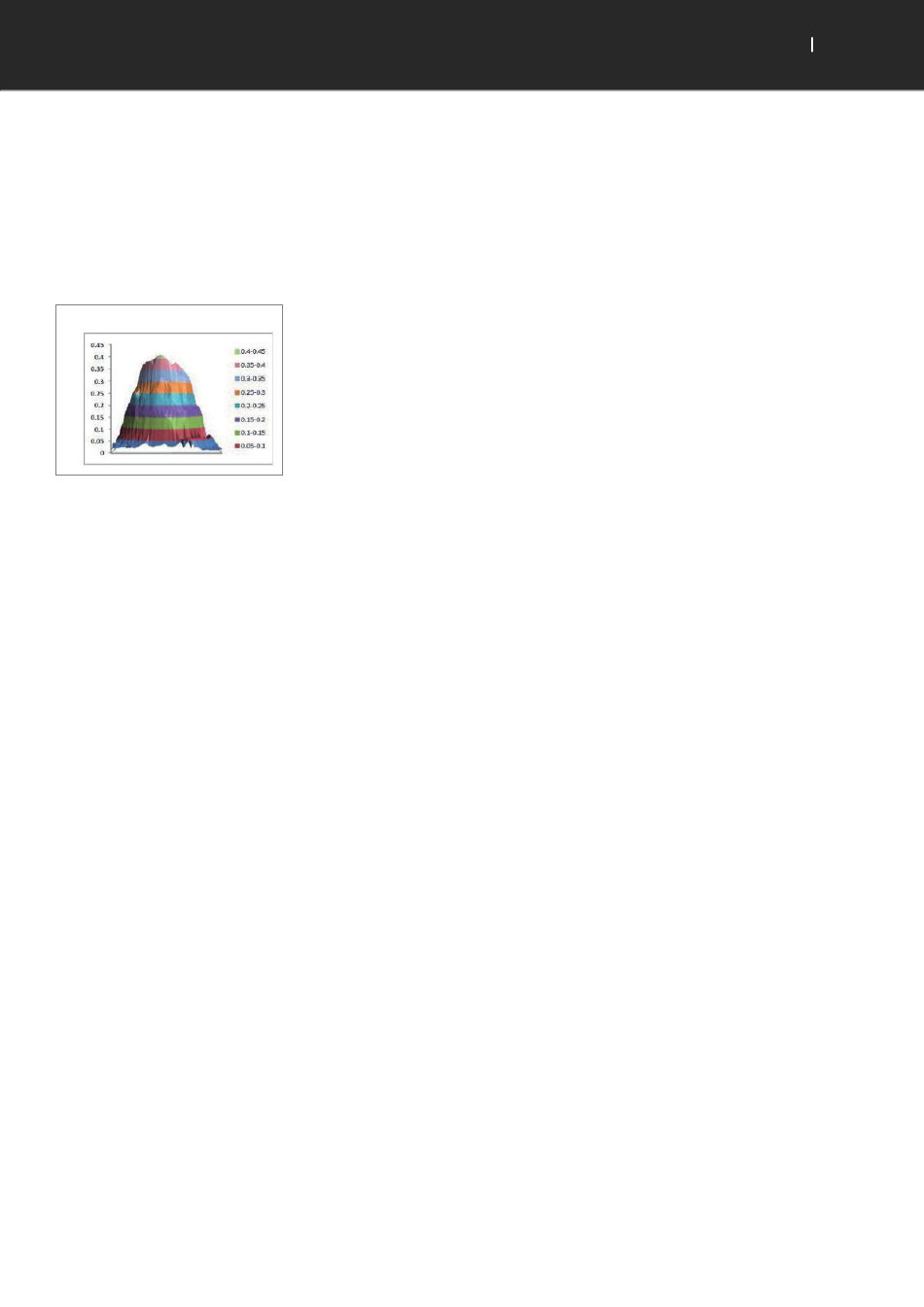

The following chart represents the distribution of the ultrasonic
radiation field and the orientation of the field with respect to the
2
5cm applicator (Y-plane represents voltage in Vrms and X-plane
represents applicator head surface in 1mm resolution).
2
5 cm Cystal (model 27335)
GENERAL SYSTEM OPERATING AND STORAGE
TEMPERATURE
Operating Conditions
The device will meet its requirement under the following
conditions:
Temperature:
Relative Humidity:
Atmospheric Pressure:
Transport and Storage Conditions
The device will remain in proper condition under the following
conditions:
Temperature:
Relative Humidity:
Atmospheric Pressure:
Time required for the Intelect® Transport 2 to warm from the
minimum storage temperature between uses until the Intelect®
Transport 2 is ready for its INTENDED USE when the ambient
temperature is 20°C: 5H
IPXX Rating for Unit
Rated to IP21
IP2* Protection against fingers or other object not greater than
80mm in length and 12mm in diameter
*1 Protection from vertically dripping water
IPXX Rating for US applicator
Rated to IPX7
IPX7 Protection from immersed in water (up to 1m depth)
5°C to 40°C
15% to 90%
70 kPa to 106 kPa
-20°C to 60°C
0% to 90%
50 kPa to 106 kPa
SYSTEM 17
