Alarm limit indications

The display uses colors to indicate limits and limit violations.
Number

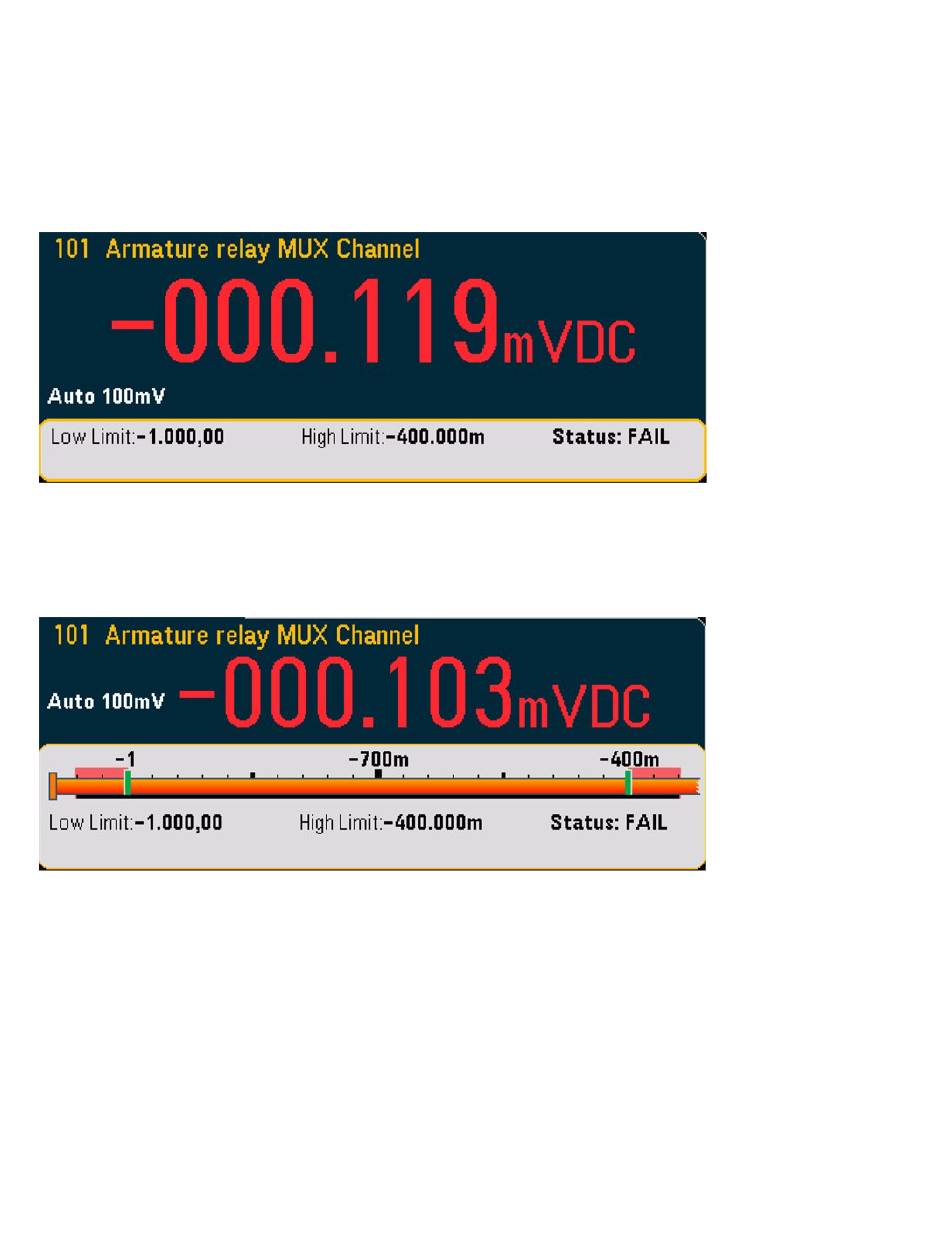

The bright red color (shown below) indicates that the displayed measurement exceeds the limits.
Bar Meter
The bar meter (below) uses the same color scheme. The following example shows a limit violation. The word FAIL
indicates that a limit has been exceeded.
