Identifying colours

Access by name with a drop-down menu

The selection of the various menus is accessed by name. The menu selection is accessed from the main menu by
pressing "+" or "–". The names of the menus that can be accessed appear on the menu selection page and one of the
menus is highlighted by a bar (see Figure 58). Shift the highlighting bar using the "+" and "-" keys to select the menu
you want and enter it by pressing SET.
The menus displayed are MAIN, USER, MONITOR, followed by a fourth item, EXTENDED MENU; this item allows the
number of menus displayed to be extended. When EXTENDED MENU is selected a pop-up appears asking you to
type in an access key (PASSWORD). The access key (PASSWORD) coincides with the combination of keys used for
direct access and allows the extended display of the menus from the menu corresponding to the access key to all
those with a lower priority.
The order of the menus is: User, Monitor, Setpoint, Installer, Technical Assistance.
When an access key is selected, the menus released remain available for 15 minutes or until they are disabled
manually by means of the item "Hide forward menus" which appears on the menu selection when using an access
key.

9.4 MEANING OF THE INDIVIDUAL PARAMETERS

9.4.1 USER MENU

From the main menu, pressing the MODE key (or using the selection menu and pressing "+" oR "-"), gives access to
the USER MENU. In this menu, the following values are displayed in sequence.

VP: Pressure display

Plant pressure measured in [bar] or [psi] depending on the measuring system used, or level of the liquid in the tank.
Available only if the pressure or depth sensor is used.

C1: Display of the phase current of pump P1

Phase pump of the electropump connected as P1 in [A].

C2: Display of the phase current of pump P2

Phase pump of the electropump connected as P2 in [A].

PO1: Display of the power absorbed by pump P1

Power delivered to the electropump P1 in [kW].

PO2: Display of the power absorbed by pump P2

Power delivered to the electropump P2 in [kW].

VE: System monitor

Displays the system status, the hardware and software release of the E.Box can be displayed.
ENGLISH
Legend
Notes on the parameters
Only in pressure boosting with active pressure sensor
Only if a pressure or depth sensor is used
Only in kiwa mode
Only in filling or drainage with a depth sensor
Read-only parameters.

Table 16: Menu structure

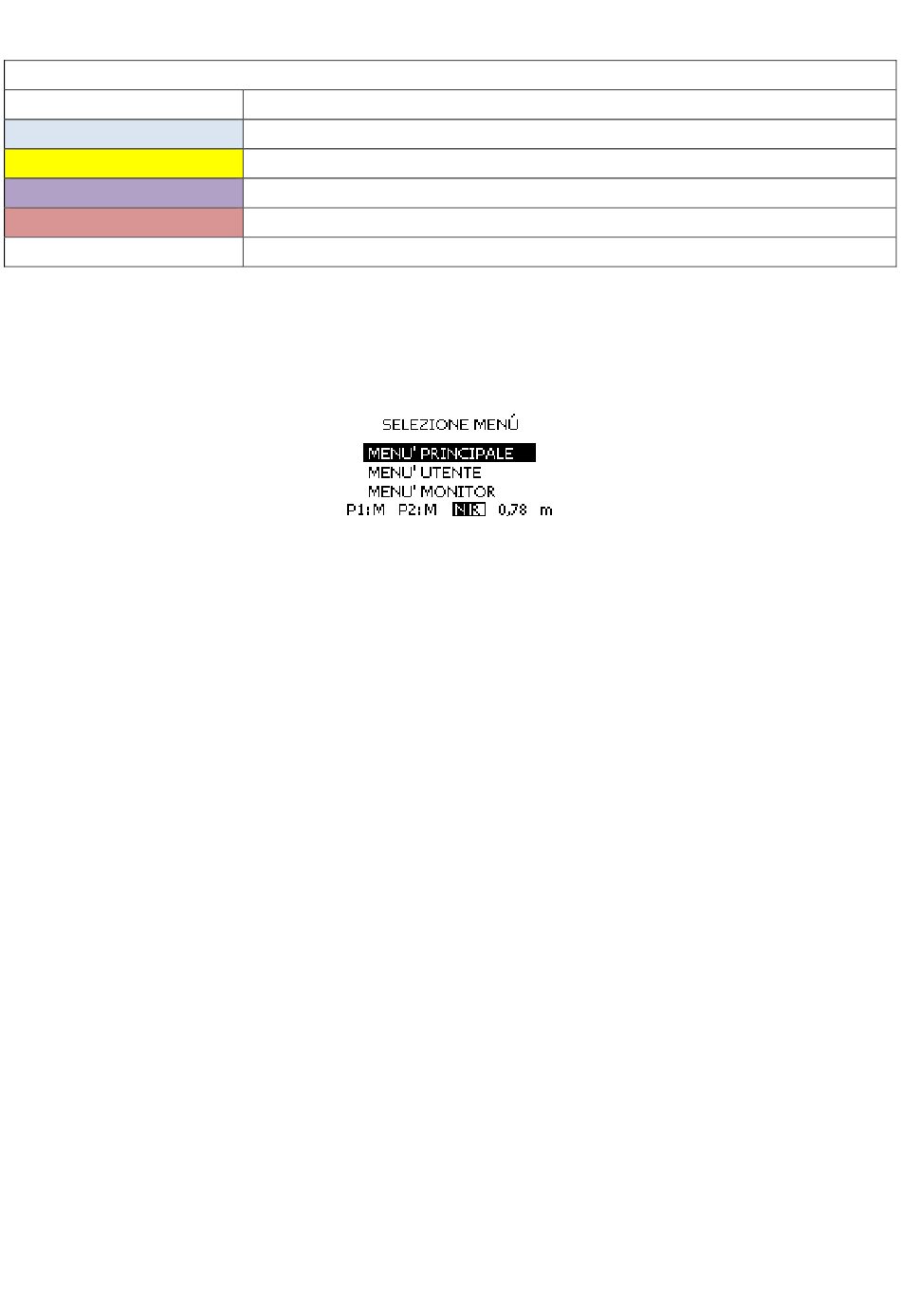

Figure 58: Selection of the drop-down menus

110
