• Ground screw (8): functional earth
The tightening torque for the connection plugs and sockets is 1.5 Nm +0.5.
The tightening torque for the M4x0.7 nut (SW7) on the ground screw is 1.25 Nm
+0.25.

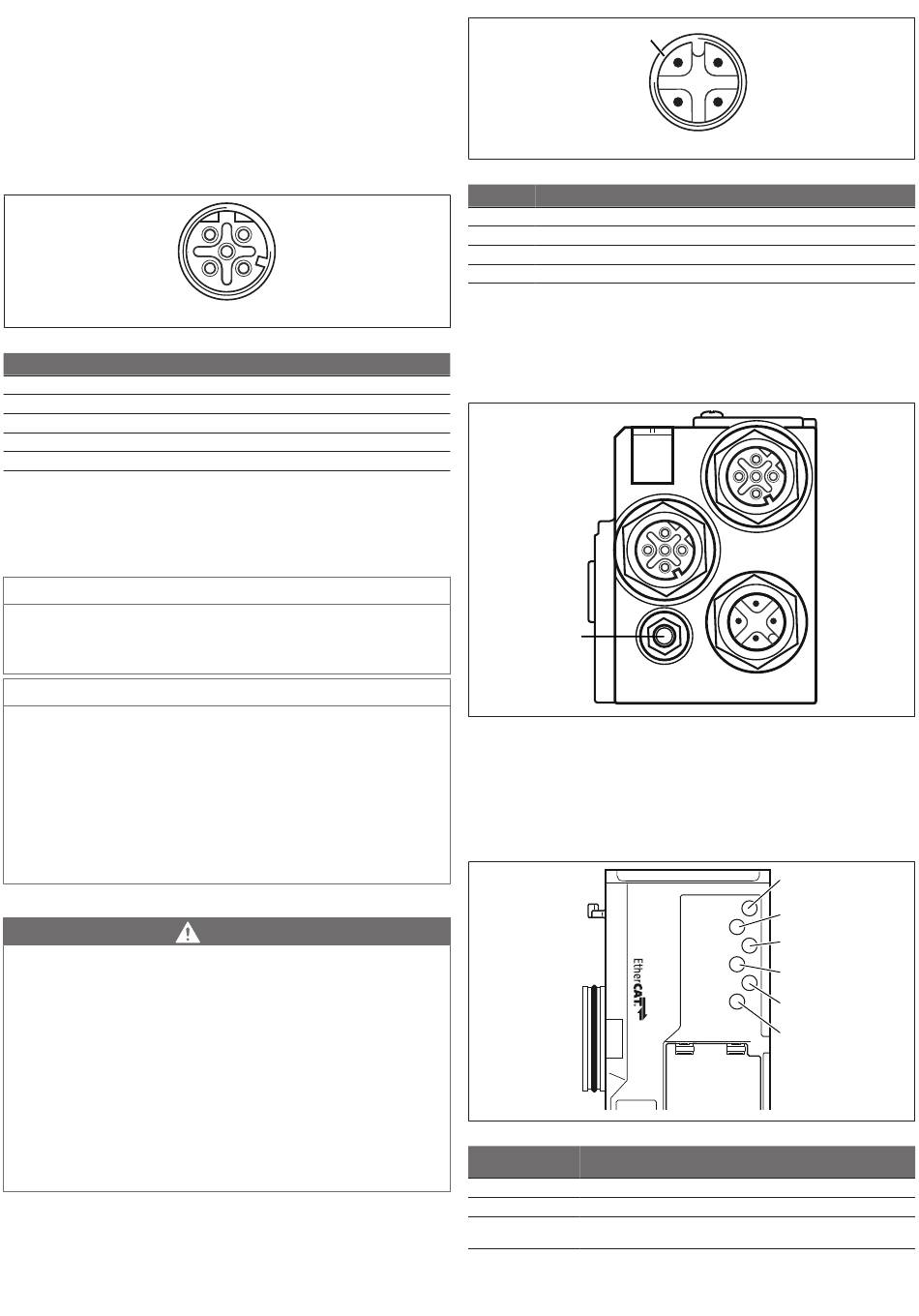

Fieldbus connection
The IN (5) and OUT (6) fieldbus connections are designed as M12 sockets, fe-
male, 4-pin, D-coded.
See Table 4 for the pin assignments for the fieldbus connections. The view
u
shown displays the device connections.
Table 4: Pin assignments of the fieldbus connections
Pin IN (5) and OUT (6) sockets
Pin 1 TD+
Pin 2 RD+
Pin 3 TD–
Pin 4 RD–
Housing Ground (functional earth)
The controller can either be connected to fieldbus connection IN or OUT. Both
fieldbus connections are identical. However, we recommend connecting the
EtherCAT IN plug to the EtherCAT OUT plug of the upstream participant on all de-
vices.
Fieldbus cable
Danger caused by incorrectly assembled or damaged cables!
The bus coupler may be damaged.
Only use shielded and tested cables.
u
Faulty wiring!
Faulty wiring can lead to malfunctions as well as damage to the network.
1. Comply with the EtherCAT specifications.
2. Only a cable that meets the fieldbus specifications as well as the connection
speed and length requirements should be used.
3. In order to assure both the protection class and the required strain relief,
the cable and plug assembly must be done professionally and in accor-
dance with the assembly instructions.
4. Make sure that you do not create a ring topology without a ring master.

Power supply

Electric shock due to incorrect power pack!
Danger of injury!
1. Only use the following power supply for the bus coupler:
- 24 V DC SELV or PELV circuits, each with a DC fuse that can interrupt a cur-
rent of 6.67 A within max. 120 s, or
- 24 V DC circuits meeting the requirements for energy-limited circuits as
described in section 9.4 of UL standard UL 61010-1, third edition, or
- 24 V DC circuits meeting the requirements for power-limited power
sources in accordance with section 2.5 of UL standard UL 60950-1, second
edition, or
- 24 V DC circuits meeting the requirements of NEC Class II in accordance
with UL standard UL 1310.
2. Make sure that the power supply of the power pack is always less than
300 V AC (outer conductor – neutral wire).
The X1S power supply connection (7) is an M12 plug, male, 4-pin, A-coded.
See Table 5 for the pin assignments for the power supply. The view shown dis-
u
plays the device connections.
AVENTICS™ EtherCAT | R412018142-BAL-001-AG | English
1 2
4
3
IN/OUT
NOTICE
NOTICE
DANGER
7
Table 5: Power supply pin assignments
Pin X1S plug
Pin 1 24 V DC sensor/electronics power supply (UL)
Pin 2 24 V DC actuator voltage (UA)
Pin 3 0 V DC sensor/electronics power supply (UL)
Pin 4 0 V DC actuator voltage (UA)
• The voltage tolerance for the electronic components is 24 V DC ±25%.
• The voltage tolerance for the actuator voltage is 24 V DC ±10%.
• The maximum current for both power supplies is 4 A.
• The power supplies are equipped with internal electrical isolation.
Functional earth connection
8
To discharge the EMC interferences, connect the FE connection (8) on the bus
u
coupler via a low-impedance line to functional earth.
The cable cross section must be designed according to the application.
4.1.2 LED
The bus coupler has 6 LEDs.
The table below describes the functions of the LEDs. For a comprehensive de-
scription of the LEDs (see "LED Diagnosis on the Bus Coupler").
Table 6: Meaning of the LEDs in normal mode
Designation Function
UL (14) Monitors electronics power supply
UA (15) Monitors the actuator voltage
IO/DIAG (16) Monitors diagnostic reporting from all mod-
ules
2 1
3 4
X1S
IN
OUT
X1S
14
UL
15
UA
16
IO/DIAG
RUN
17
L/A 1
L/A 2 18
19
State in normal
mode
Illuminated green
Illuminated green
Illuminated green
