Orbea BLUE PAPER URRUN 2022 Manual Tecnico página 14

26 | ORBEA
X
OFF > ECO > TRAIL > BOOST
BOOST > TRAIL > ECO > OFF
Y

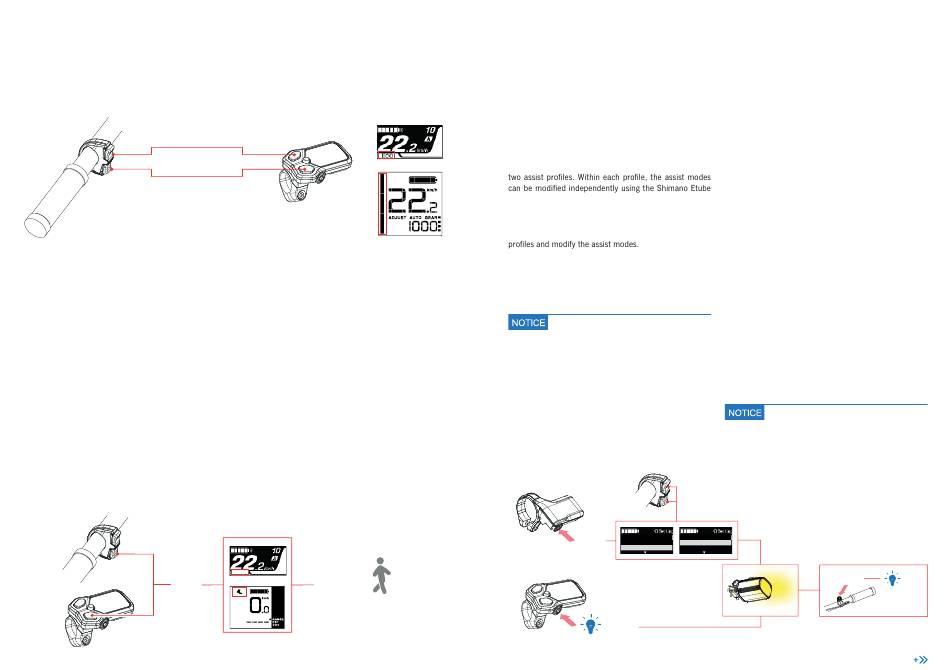

CHANGING THE ASSIST MODE
To change between assist modes with the SW-EM800 (as-
semblies with SC-EM800 display) or the SC-E5003 display,
press the X button to increase the assist mode up until
the maximum available (Boost). Press the Y button to de-
crease the assist level until the no-assist mode is reached.
The available assist modes are:
· OFF (no electric assist)
· ECO
· TRAIL
· BOOST
The SC-EM800 display will show the name of the selected
assist mode on the screen.
The SC-E5003 display will show the selected assist mode
by means of the bars on the left of the screen. The more
segments are lit up (maximum 3), the more powerful the
selected assist mode.
Y
(1 sec)
TECHNICAL MANUAL
WALK ASSIST
To activate Walk Assist, press the SW-EM800 remote le-
ver or the SC-E5003 display button Y for 1 second until
the word WALK appears on the EM800 display or the
walk assist symbol is visible on the E5003 display.
Release the Y button and press it again to engage Walk
Assist. The system will help you push the bike along as
long as the Y button is pressed.
Read the Shimano SC-E5003 display here:
https://si.shimano.com/api/publish/storage/pdf/en/
um/7HU0B/UM-7HU0B-000-ENG.pdf
Read the Shimano SC-EM800 display here:
https://si.shimano.com/api/publish/storage/pdf/en/
um/7H90B/UM-7H90B-001-ENG.pdf
SC-EM800
WALK
Y
(Press&Hold)
SC-E5003
B LUE PAP ER U RRU N · 2022
SC-EM800 The power delivery levels of each assist mode can be cus-
tomised using the Shimano Etube Project Cyclist smart-
phone app to adjust Urrun to your needs.
The Shimano EP8 RS motor allows you to choose between
SC-E5003
Project Cyclist smartphone app.
Read the Shimano Etube Project Cyclist app section of this
manual to learn about how to change between the assist
Read the complete Shimano Etube Project Cyclist app
manual on the link below:
https://si.shimano.com/#/en/iUM/7J4MA
Models equipped with the Shimano SC-
E5003, which does not have Bluetooth con-
nectivity, cannot be connected to the Etube
project Cyclist app to customise the assist
modes. If you wish to customise the power
delivery of the assist modes on these mod-
els, take your bike to an authorised Orbea or
Shimano dealer to connect the system to the
Etube Project Professional software using the
SM-PCE02 interface and make the necessary
changes or replace the original display for
the Shimano SC-EM800 display.
1 SEC
SC-EM800
SC-E5003
T URNING T HE L IGH TS ON/OFF
( OPTION)
If your Urrun model has been equipped from Orbea with
the Lezyne front light option, you can activate the light
from the Shimano display. On Shimano SC-EM800 dis-
plays, access the Settings menu by pressing the display´s
button, navigate to the Lights option with the handlebar
remote switch and select the option with the display´s but-
ton. Select On to activate the light.
On Shimano SC-5003 displays, use the display´s lights
button to activate or deactivate the front light. Once you
have activated the light through the display, you can use
the Lezyne front light remote on the handlebar to turn the
light On and Off without having to use the display. Press
and hold the remote button to turn the light On or Off.
With the front light On, press the handlebar remote but-
ton to access the High Bean and Low Bean modes. If you
are not going to use the light while using your Urrun, it is
recommended to deactivate the light through the display
so the motor does not send current to the front light if it
is not being used.
The Shimano EP8 motor allows for a rear
light cable to be connected to the motor.
The rear light is activated by the method
described above. Orbea does not offer a rear
light assembly on Urrun models, and thus is
not responsible for the viability of its assem-
bly if the user/distributor decides to mount a
motor connected rear light to Urrun models.
Clock Off
Start mode
On
Lights
ON
ON/OFF
ORBEA | 27
E N
1 SEC
ON/OFF
