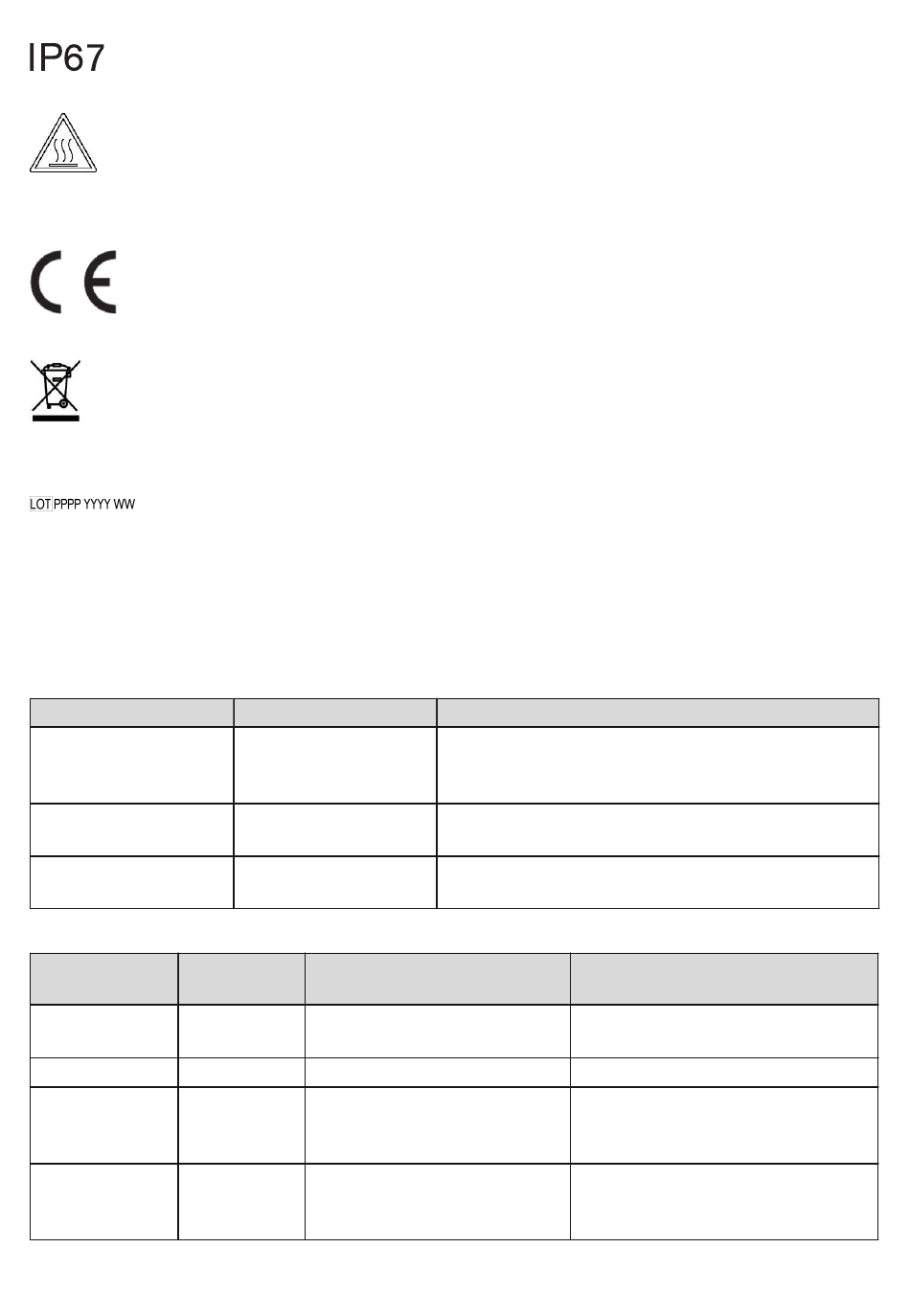

13.1.2 Symbols on the battery charger

Declaration of conformity according to the applicable European directives
In some jurisdictions it is not permissible to dispose of these products with unsor­
ted household waste. Disposal that is not in accordance with the regulations of
your country may have a detrimental impact on health and the environment. Please
observe the instructions of your national authority pertaining to return and collec­
tion.
Lot number

13.2 Operating states/error signals

The prosthesis indicates operating states and error messages through beeps and vibration sig­
nals.

13.2.1 Signals for operating states

Battery charger connected/disconnected
Beep signal
1x short
1x short
Mode switching
Beep signal Vibration
signal
1x short 1x short
1x short 1x short
1x short 1x short
2x short 2x short
Vibration signal
3x short
1x before beep signal Battery charger disconnected after start of char­
Additional action per­
formed
Mode switching using
remote control
Bouncing on the forefoot
Prosthetic leg moved next to
contralateral leg, set down
and kept still for 1 second
Prosthetic leg moved next to
contralateral leg, set down
and kept still for 1 second
Event
Battery charger is connected or
battery charger already disconnected prior to
start of charging mode
Charging mode started (3 sec. after connection
of battery charger)
ging mode
Event
Mode switching process using
remote control.
Bouncing pattern recognised.
Switching to basic mode (mode
1) carried out.
Switching to MyMode 1 (mode 2)
carried out.
