J5 – In-Out

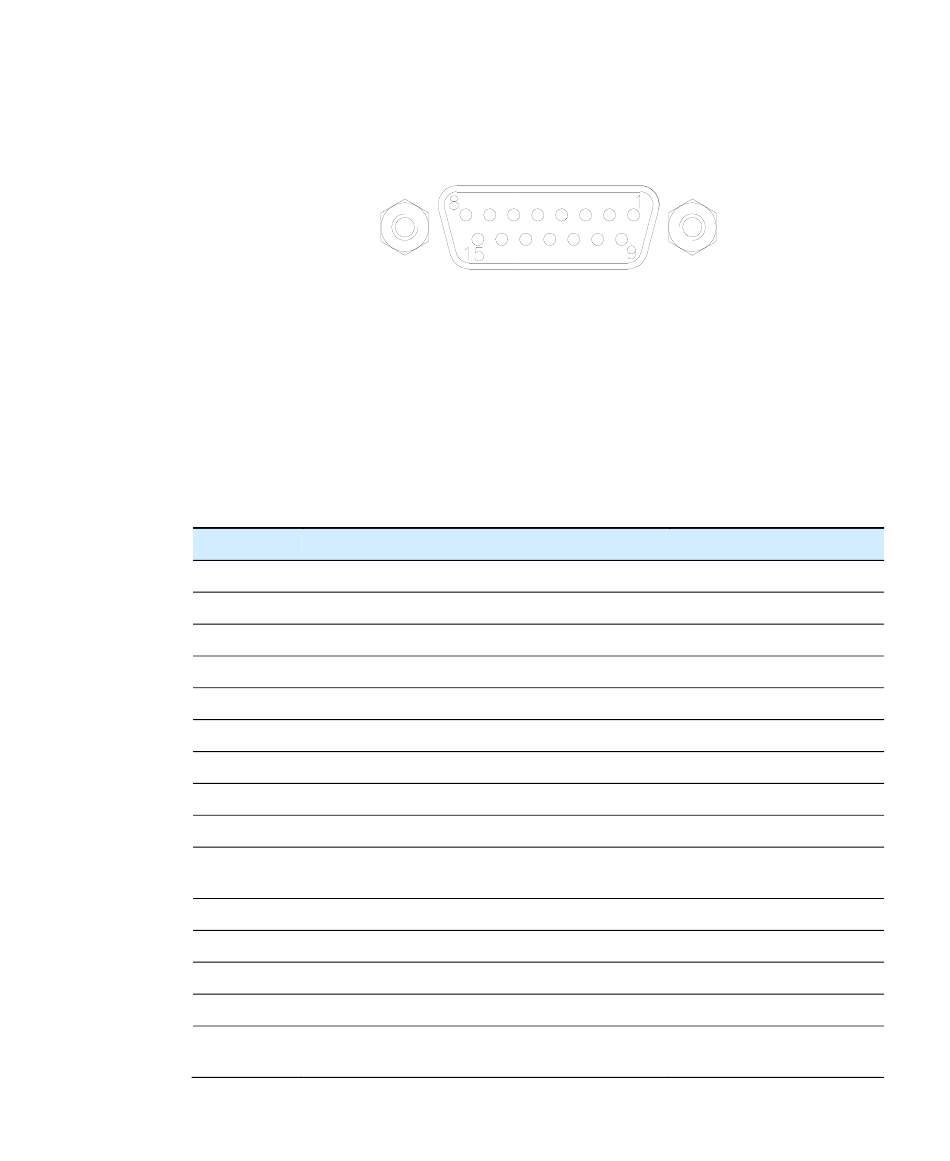

Figure 61
This connector carries all the input and output signals to remote control the
TPS-compact.
It is a 15-pins D type connector; the available signals are detailed in the table, the
following paragraphs describe the signal characteristics and use.
Table 4
Pin N.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Agilent TPS-compact User Manual
Signal name
START/STOP (+)
START/STOP (-)
ADAPTIVE SCROLL DRIVING DISABLE (+)
ADAPTIVE SCROLL DRIVING DISABLE (-)
SPEED SETTING (+)
SPEED SETTING (-)
SOFT START (+)
SOFT START (-)
+24 Vdc Imax = 30 mA
NORMAL OUTPUT (relay contact)
Vmax = 125V Imax = 200 mA
PROGRAMMABLE SET POINT
NORMAL OUTPUT (relay contact)
FAULT OUTPUT
PROGRAMMABLE ANALOG SIGNAL (+)
• GROUND
• PROGRAMMABLE ANALOG SIGNAL (-)
Input/Output
IN
IN
IN
IN
IN
IN
IN
IN
OUT
OUT
OUT
OUT
OUT
OUT
OUT
