Tea Profile Creation; Assigning Profiles; Coffee Pot Dosing; Drip Coffee Dosing - Bezzera ARCADIA DE BREWING PROFILE Manual De Instrucciones

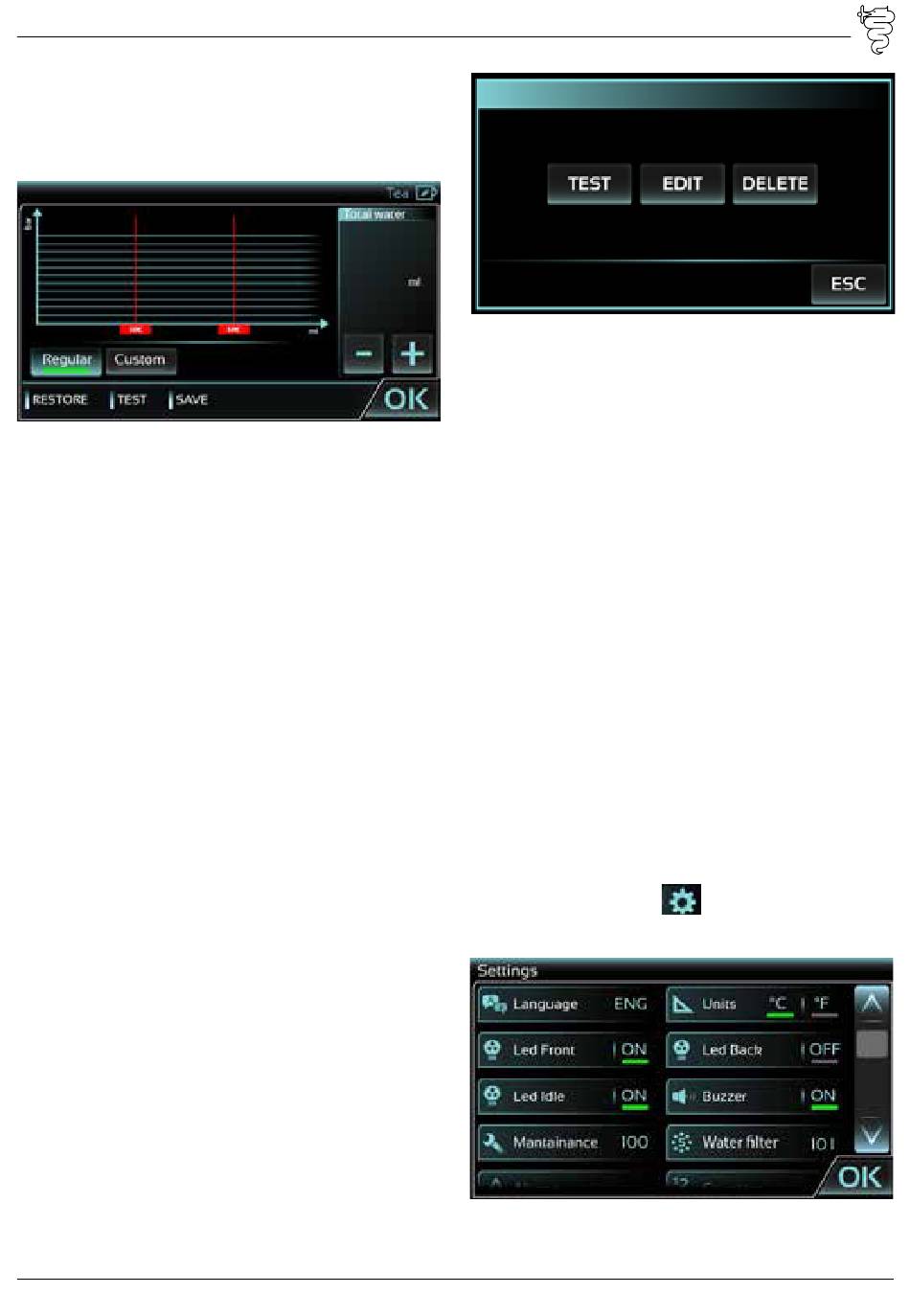

5.8.1.3 TEA profile creation

After choosing to create a TEA type profile the
display will show the following screen
By entering the total quantity of water to be used
for the preparation of the TEA beverage, a pre-
set REGULAR profile is proposed. It is possible
to customise the dosing profile by pressing the
CUSTOM key. In this mode all the extraction pa-
rameters can be changed. Select one of the three
available sectors to modify the extraction param-
eters (dose and pause time).
Pressing the RESTORE key restores the profile pa-
rameters before the change starts.
By pressing the TEST key it is possible to dose the
profile created
Pressing the SAVE key will display a keyboard to
assign a name to the profile created (maximum 8
alphanumeric characters) and to save it.

5.8.2 Assigning PROFILES

To assign a profile created to a specific dose key,
access the PROFILE MANAGER menu using the
appropriate keys in the group menu and in the
drop-down menu (which can be opened by press-
ing the Bezzera logo on the main screen).
From the PROFILE MANAGER menu it is pos-
sible to select the group and the key to which
to assign a profile and then to press the name
of the desired profile to perform the assign-
ment. By pressing, instead, on the icon to the
right of the profile name, a multiple choice
screen is displayed where it is possible to choose
to try, modify or delete the selected profile.
BEZZERA ARCADIA BREWING PROFILE
MOD.

5.9 Coffee pot dosing

(Fig. 10)
Coffee can be dispensed directly into a pot or
tall cup.
To perform this procedure, remove the base grille,
as shown in Fig. 10, then position the cup and
dispense the coffee as previously described.

5.10 DRIP coffee dosing

The machine is also designed for dosing Ameri-
can coffee where it is possible to dispense using a
uniform pressure profile set at 3 bar.
Remove the filter-holder from the dosing group,
remove the base grille if necessary and place
under the dosing group a container with a filter
suitable for American coffee filled with ground
coffee.

5.11 User level programming

To access the user level programming menu, from
the main menu, press
The display will show the following screen
51
