Installing Charging Dock

Installing Charging Dock
US
There are two options for securing the charging dock.
The installation variant depends on the type of power
FC
cable (exposed or concealed).
– Installation without spacer (concealed power
cable): The mounting plate is fitted directly to
ESM
the wall.
– Installation with spacer (exposed power cable):
PTB
The mounting plate is fitted on the wall using
a spacer for the power cable.
TR

Installation without spacer

RU
UK
VIE
HE
AR
JPN
KOR

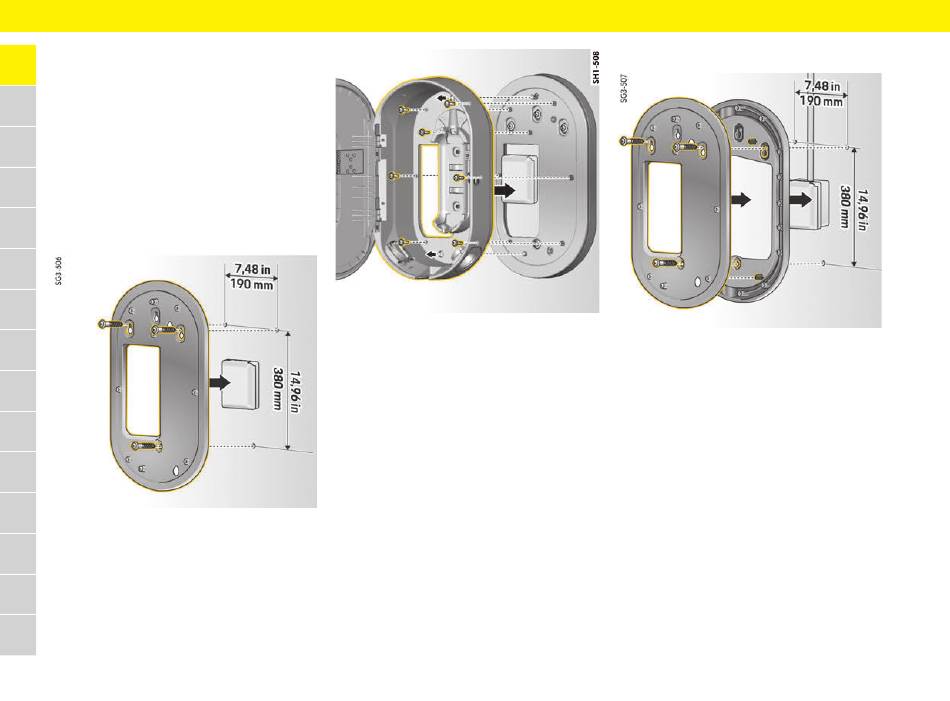

Fig. 4: Drilling dimensions
1. Mark the drill holes on the wall.
CHS
2. Drill the mounting holes and insert wall plugs.
3. Screw the mounting plate to the wall.
CHT
THA
6
Fig. 5: Screwing charging dock to mounting plate
4. Screw the charging dock to the mounting plate.

Installation with spacer

Fig. 6: Drilling dimensions
1. Mark the drill holes on the wall.
2. Drill the mounting holes and insert wall plugs.
3. Screw the mounting plate together with
the spacer to the wall.
