Securing Cables

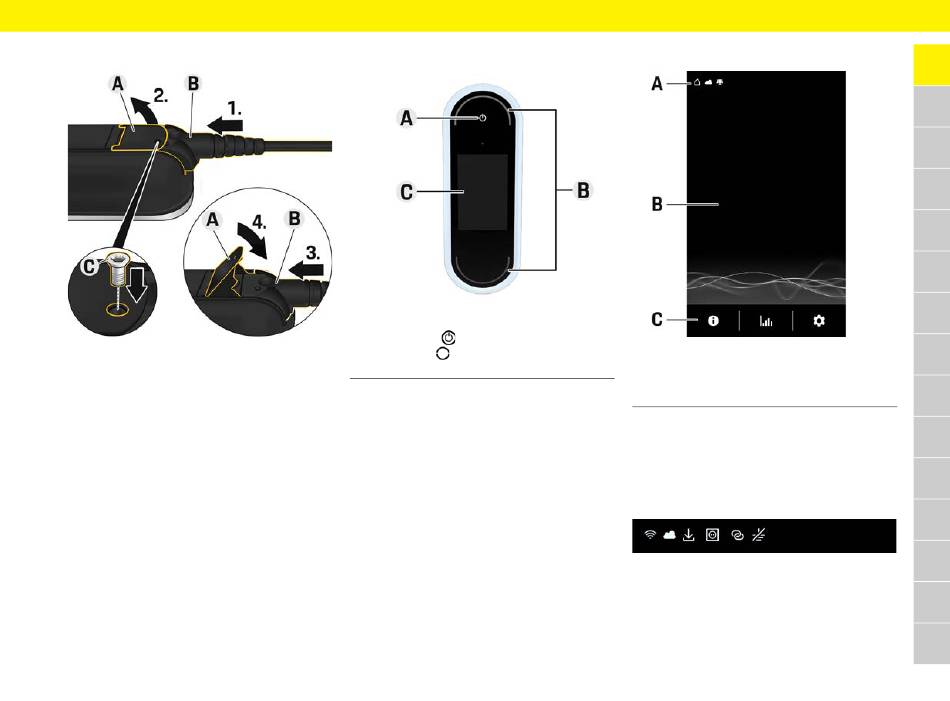

Fig. 4: Securing cables
b The lever A is closed.
1. Insert the plug B into the control unit until
resistance is first felt.
2. Lift the lever A.
3. Push in the plug B fully.
4. Close the lever A.
5. Secure the plug B to the control unit using
screw C.
Control Unit
Fig. 5: Control unit
A
Power button
B
Status LEDs
C
Display
The charger can be switched on and off using the
Power button A.
The status LEDs B show the status of the charger.
Communication with the charger takes place via the
display C. It shows information and error messages.
Display
Fig. 6: Charger display
A
Status bar
B
Information area
C
Menu bar
A brightness sensor controls the brightness of the
display. The brightness adjusts automatically to the
ambient lighting conditions.
Status bar
Various symbols can be displayed in the status bar.
Fig. 7: Status bar (sample display)
Control Unit
US
FC
ESM
PTB
TR
RU
UK
VIE
HE
AR
JPN
KOR
CHS
CHT
THA
9
