Broadcast Video Reference; Factory Reset - Blackmagic Design ATEM Mini Manual De Instalación Y Funcionamiento

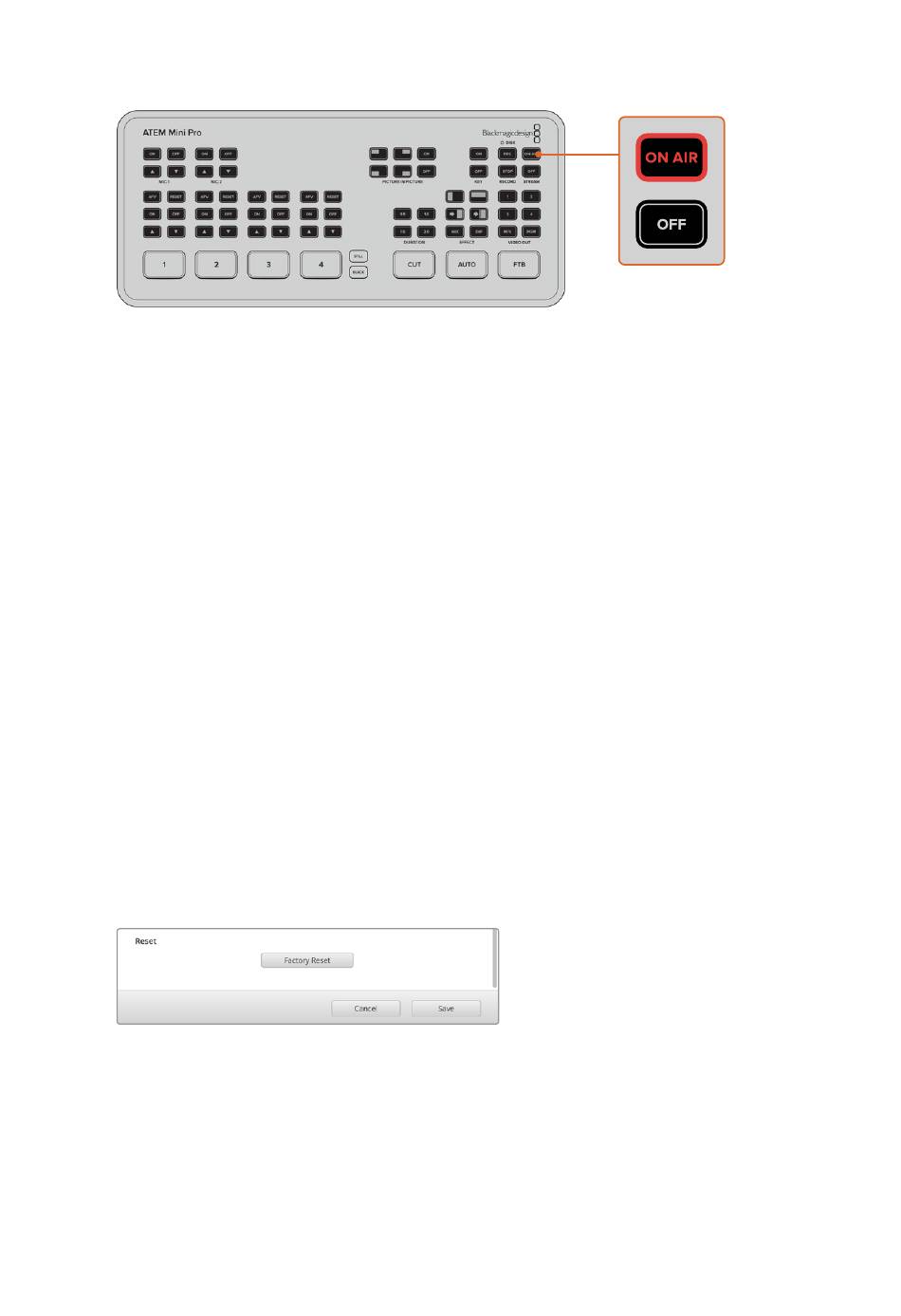

When the ATEM Streaming Bridge has been selected in ATEM Software Control's
live stream palette, press the On Air button on the remote ATEM Mini Pro
The on air button should illuminate solid and the remote ATEM Mini Pro should start sending its
streaming video data to your ATEM Streaming Bridge. If the on air button is flashing, then it
indicates it has not found your ATEM Streaming Bridge or there is a network problem with either
the ATEM Mini Pro or ATEM Streaming Bridge end of the link.
Even though a lot of the ATEM Streaming Bridge setup has been designed to be easy and the
setups as automatically as possible, such as the port forwarding settings on your internet
firewall, the Internet equipment can be horribly complex and it's often so complex it's possible
the equipment used on your Internet connection might not have been designed by humans.
So don't feel too bad if you cannot make this work! You might need a network administrator or
IT person to help if you cannot make it work by yourself.

Broadcast Video Reference

The ATEM Streaming Bridge has both an analog tri-sync and black burst video reference input
as well as an SDI input that can be used for reference. Reference is used by large broadcasters
who need all the video connections in their facility to be aligned so they can be switched
around a large system. There is referencing timing settings in the ATEM Setup.

Factory Reset

If you have become a little lost and you want to reset the ATEM Streaming Bridge back to its
default factory settings, then you can select the 'factory reset' button in the ATEM Setup
software. This can be useful if you have been using ATEM Streaming Bridge for an internet link
and you now want to move it to a new setup using your local network. Just factory reset it and it
will be set back to DHCP and you can just connect and find it on your local network.
Click the reset button to restore ATEM Streaming Bridge
to DHCP so it can be found on your network automatically
Creating Video Links with ATEM Streaming Bridge 121
