31.2.7

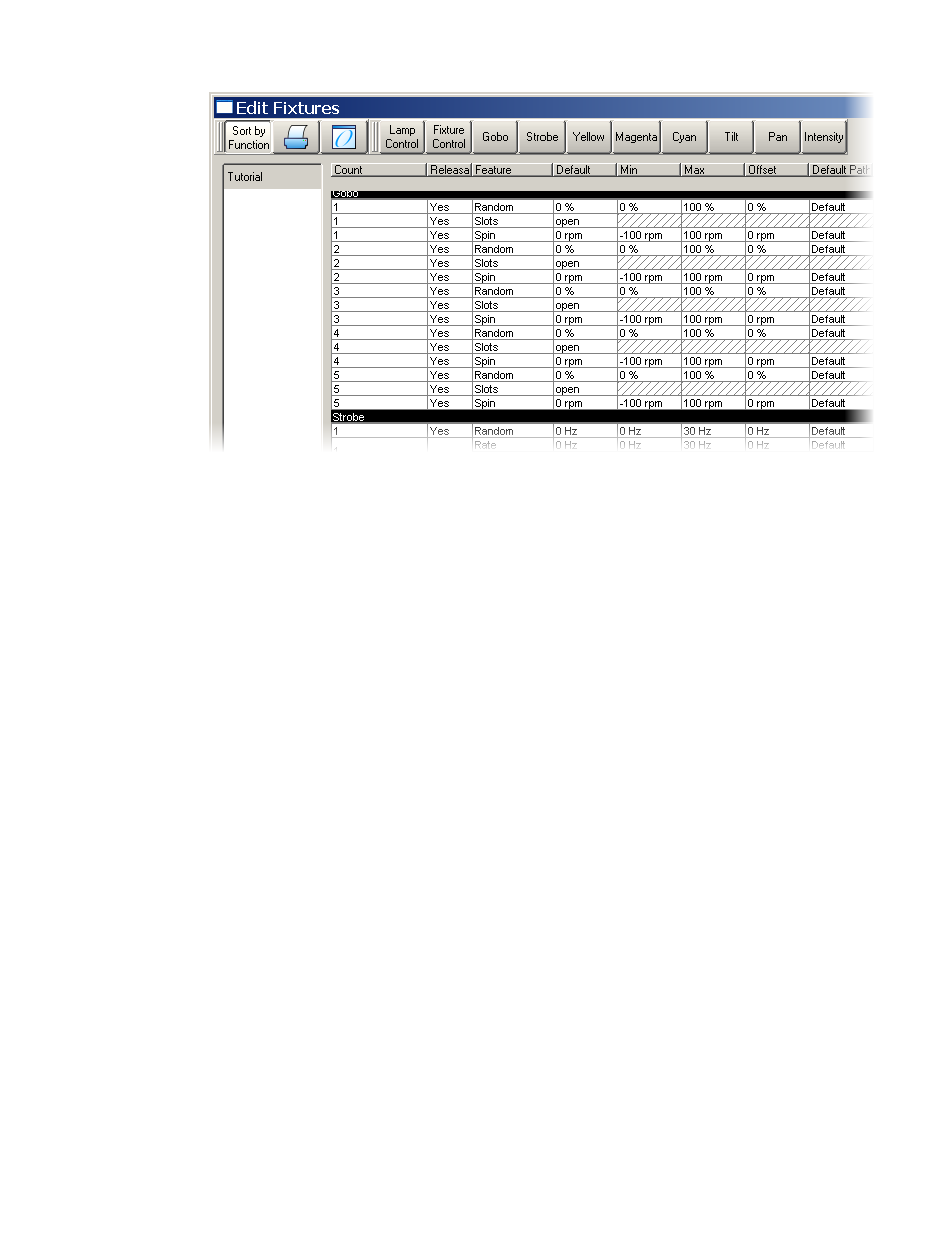

Step 7: Programming Your Custom Fixture

When programming with the fixture from the tutorial, bear in mind the following:
• Pan and Tilt are 16-bit DMX, but appear as a single parameter (and use
2 DMX channels each).
• Cyan, Magenta, and Yellow function properly in respect to the DMX
values being inverted from the Real World value.
• The Gobo slots appear on the Slot toolbar.
• The Gobo Spin and Random functions appear on the Gobo encoder
wheel.
• The various types of parameters that are controlling channel 10: shutter,
strobe, fixture control, and lamp control. Notice how each appears as
unique functions, although they all output on the same DMX channel.
