Operating Design
4.3 Operating Elements in the Weighing Display
1

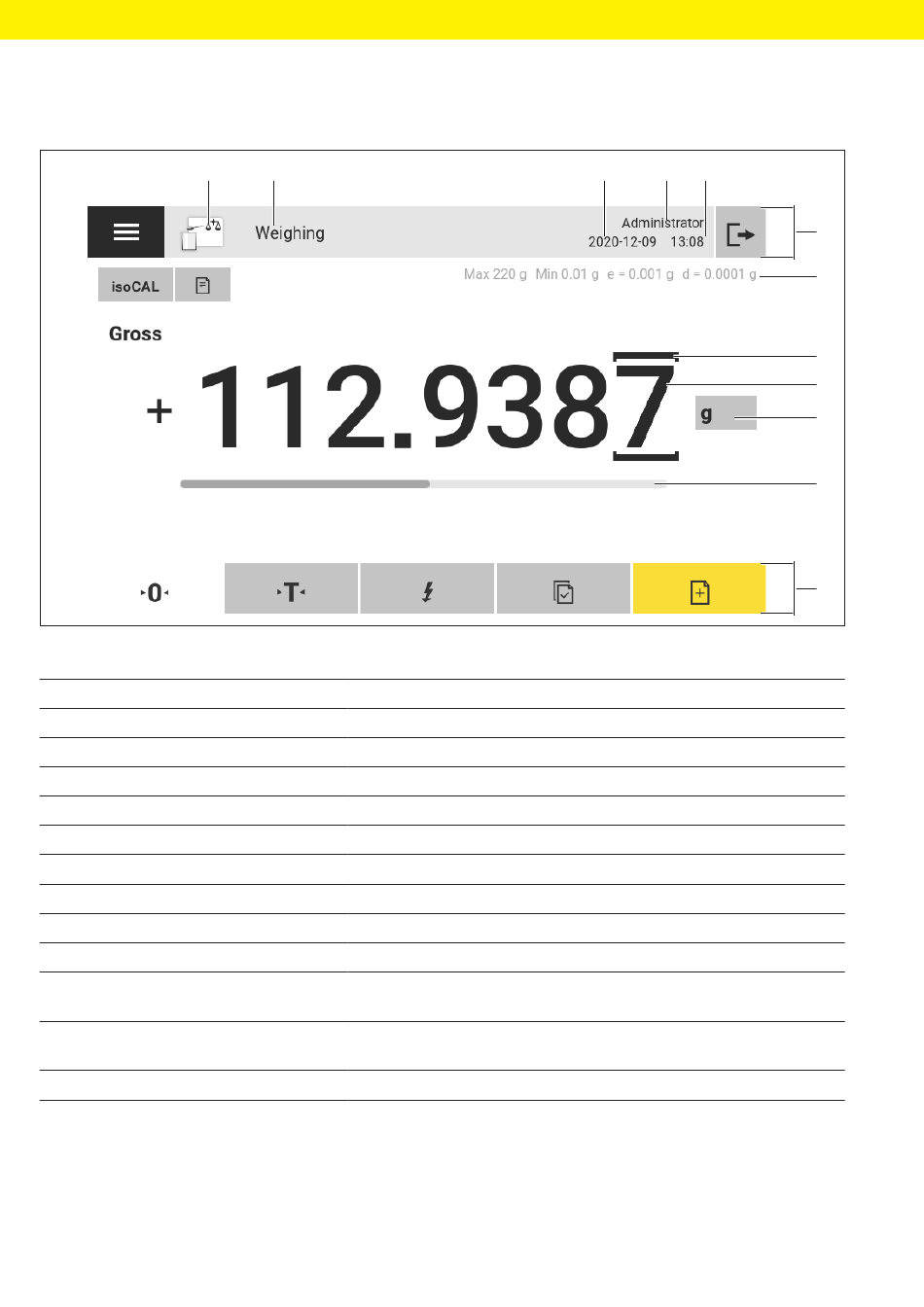

Fig. 10: Weighing display (example)
Pos . Name
1 Application symbol
2 Task name
3 Date display
4 Username
5 Time display
6 Navigation bar
7 Metrological data
8 Labeled points
9 Weight value display
10 Weighing unit
11 Capacity display
12 Function bar
22 Operating Instructions Cubis
2
Description
Displays the symbol for the active application.
Displays the name of the active task.
Displays the current date.
Displays the name of the active user profile.
Displays the current time.
Enables navigating the menus.
Labels the differentiated points.
In the selected unit and resolution
— Displays the selected unit, e.g. grams, [g].
— Enables the unit and resolution to be selected.
Displays the measured value as a percentage of weighing capacity
utilization.
Displays available operating functions for the current display.
| MCA Models
®
3 4 5
6
7
8
9
10
11
12
