DESCRIPTION Of ThE MAChINE AND ITS fUNCTIONS

5. DESCRIPTION Of ThE MAChINE AND ITS fUNCTIONS
The ORVED chamber vacuum packing machines Cuisson line are used to vacuum pack products inside special bags or
containers. For this purpose, the vacuum bag containing the product is placed inside the vacuum chamber horizontal or
vertical.
Once the lid is closed the vacuum pump is activated, which draws the air from the chamber. After a few seconds, the
depression created inside the chamber allows the lid to remain closed. Once the vacuum is complete, the bag is herme-
tically sealed by means of a sealing bar. Subsequently, the air enters the chamber once again, thereby allowing the lid to
be opened automatically. The packed product can then be removed from the chamber.
Another method of vacuum packing products consists in using special rigid containers, inside which the vacuum is created
by using a device that connects the machine to the container. Space permitting, the container is placed directly inside the
chamber. The air is drawn from the container through a special check valve, which is closed once the vacuum is complete.
Special "embossed" bags allow the vacuum to be created outside the vacuum chamber, thereby allowing products with
dimensions larger than those of the vacuum chamber to be packed.

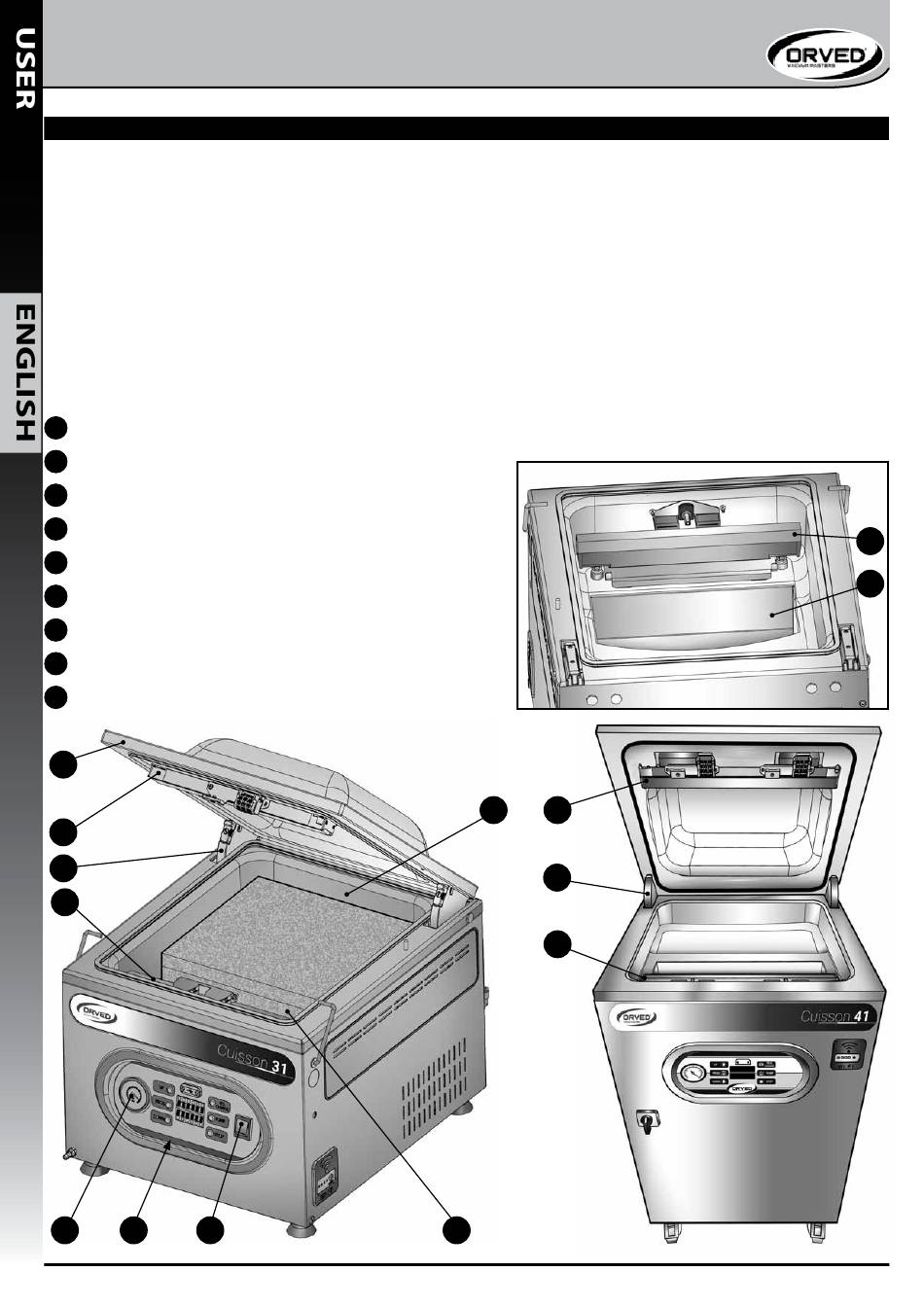

1 Digital control panel with dual 12-digit display and bright icons
2 Main switch
3 Analogue vacuum gauge
4 Vacuum chamber horizontal (tank)
5 Upright vacuum chamber for packaging liquids
6 Hinge
7 Lid
Sealing bar
8
9 Counterpart bar
7
9
6
8
3 1 2
22
Rev. 01 - 03/2018 - Cod. 1500024 - Instruction manual for vacuum chamber packaging machines for vacuum cooking mod.
4 9
6
8
5
8
5
Cuisson
