Teranex 2D

FRAME RATE ASPECT
P 23.98 24 ANAM 14:9
LBOX CCUT
I 25 50
PBOX ZOOM
29.97 59.94
PSF SMART ADJ
30 60
REF IN
ANALOG AUDIO IN/OUT
AES/EBU DIGITAL AUDIO IN/OUT
1
2
3
4
5
6
7
8
9
VIDEO AUDIO
IN SDI
EMBED
HDMI AES
OUT ANLG ANLG
1
AUX POWER
GND +12V GND
10
Y/NTSC/PAL IN B-Y IN R-Y IN
IN LOOP
HDMI IN
SD/HD/3G-SDI
8

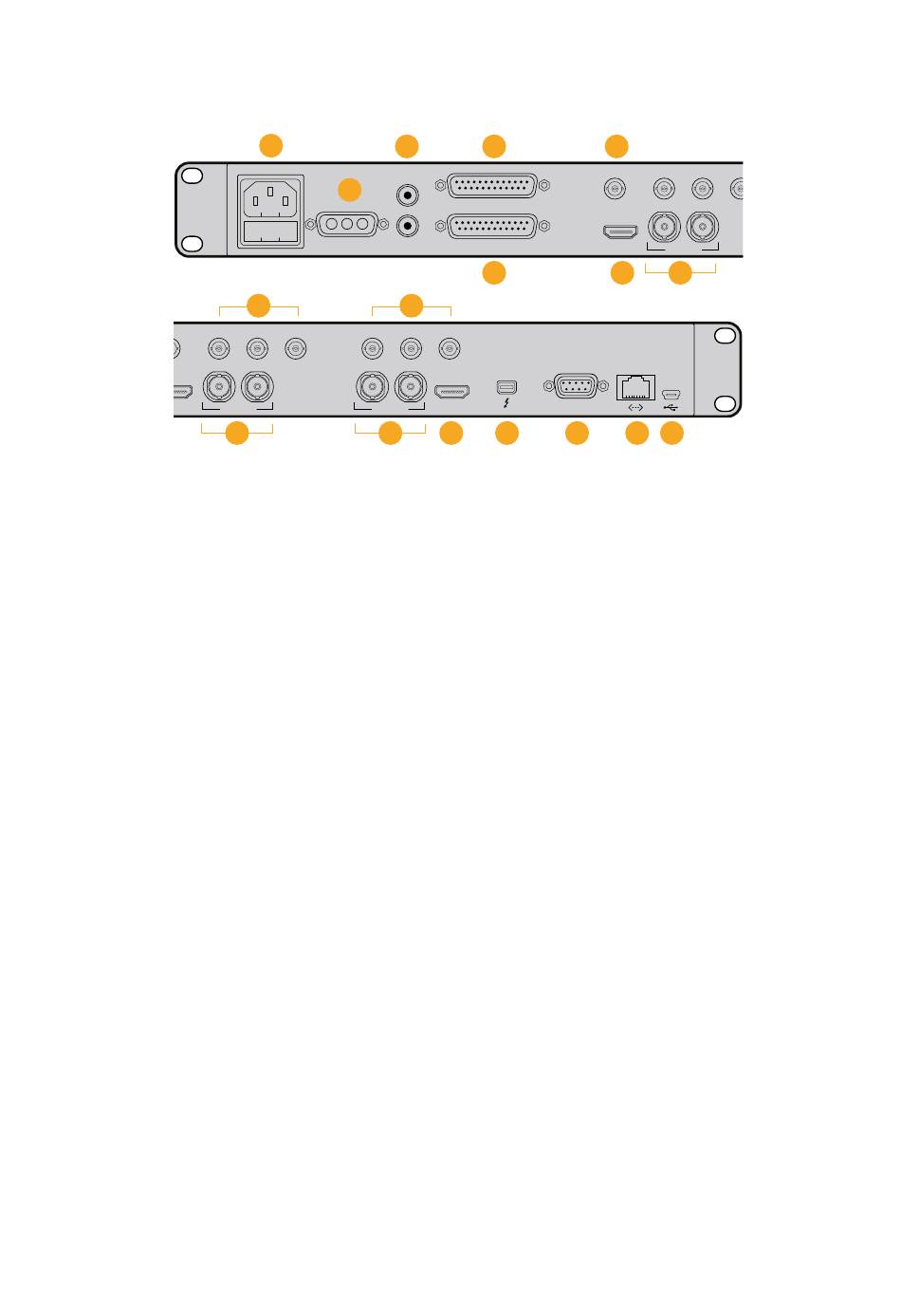

Power
1x IEC C14 – For built-in
international 90 – 240 volt
AC power supply.
Power – 12VDC
1x – Military grade port for external
battery power or failover redundancy
with optional "brick" DC adapter.
Analog Inputs, Left and Right
2x RCA Phono – Stereo audio inputs,
left & right, unbalanced, line level.
Analog Audio In/Out
1x DB-25 – Four channels of
balanced analog audio I/O.
AES/EBU Digital Audio In/Out
1x DB-25 – Four pairs of digital
audio I/O.
REF In
1x BNC – Black burst or
tri-level reference input.
HDMI In
1x HDMI type A – HDMI input
SDI In and Input Loop
1x BNC – 3G-SDI input.
1x BNC – 3G-SDI input active
loop through.
SDI Outputs
2x BNC – Replicated 3G-SDI outputs.
FORMAT FRAME RATE
486 576 P 23.98 24
720 1080 I 25 50
2K 29.97 59.94
PSF
1080 30 60
3 4
2
L
ANALOG AUDIO IN/OUT
MENU VIDEO PRESETS
R
HOME GAIN BLK 1
STEREO IN AES/EBU DIGITAL AUDIO IN/OUT
MENU
SAT HUE 3
1
5
MENU R-Y
SHARP 5
2 B-Y
11
Y/NTSC/PAL OUT B-Y OUT R-Y OUT
OUT OUT
HDMI OUT
SD/HD/3G-SDI
9 12 13
10
11
12
13
14
15
16
ASPECT
ANAM 14:9
LBOX CCUT
PBOX ZOOM
SMART ADJ
6
REF IN Y/NTSC/PAL IN
IN
AUDIO STATUS
PANEL
2
LOCK
HDMI IN
SD/HD/3G-SDI
4
7 8
SYSTEM STATUS
REM
6
LOCK
REMOTE IN/OUT
14 15 16
Analog Video Inputs
1x BNC – Y/NTSC/PAL
component/composite input.
1x BNC – B-Y component input.
1x BNC – R-Y component input.
Analog Video Outputs
1x BNC – Y/NTSC/PAL
component/composite output.
1x BNC – B-Y component output.
1x BNC – R-Y component output.
HDMI Out
1x HDMI type A – HDMI output.
Thunderbolt
1x Thunderbolt – Capture/playback
computer interface.
Remote In/Out
1x DB9 – Sony™ compatible
RS-422 deck control port.
Ethernet
1x RJ-45 – Connect to a computer
running Blackmagic Teranex Setup
software to apply settings remotely.
USB
1x USB Type B – Connect to a
computer running Blackmagic
Teranex Setup software to update
the internal software.
MENU
HOME
MENU
1
MENU
2
B-Y IN R-Y IN Y/NTSC/PAL OUT B-Y OUT
LOOP OUT OUT
SD/HD/3G-SDI
Connectors 11 11
VIDEO
GAIN BLK 1
SAT HUE 3
R-Y
SHARP 5
B-Y
R-Y OUT
HDMI OUT
