Power your Teranex Processor and connect your inputs and outputs.
Setting your Input
1 Press the 'in' button on the control panel and select 'SDI' video. Teranex will display
the input video on the LCD, automatically detect the input format and illuminate the
corresponding buttons.
2 Select 'embed' as the audio input format.
VIDEO
IN SDI
HDMI
OUT ANLG

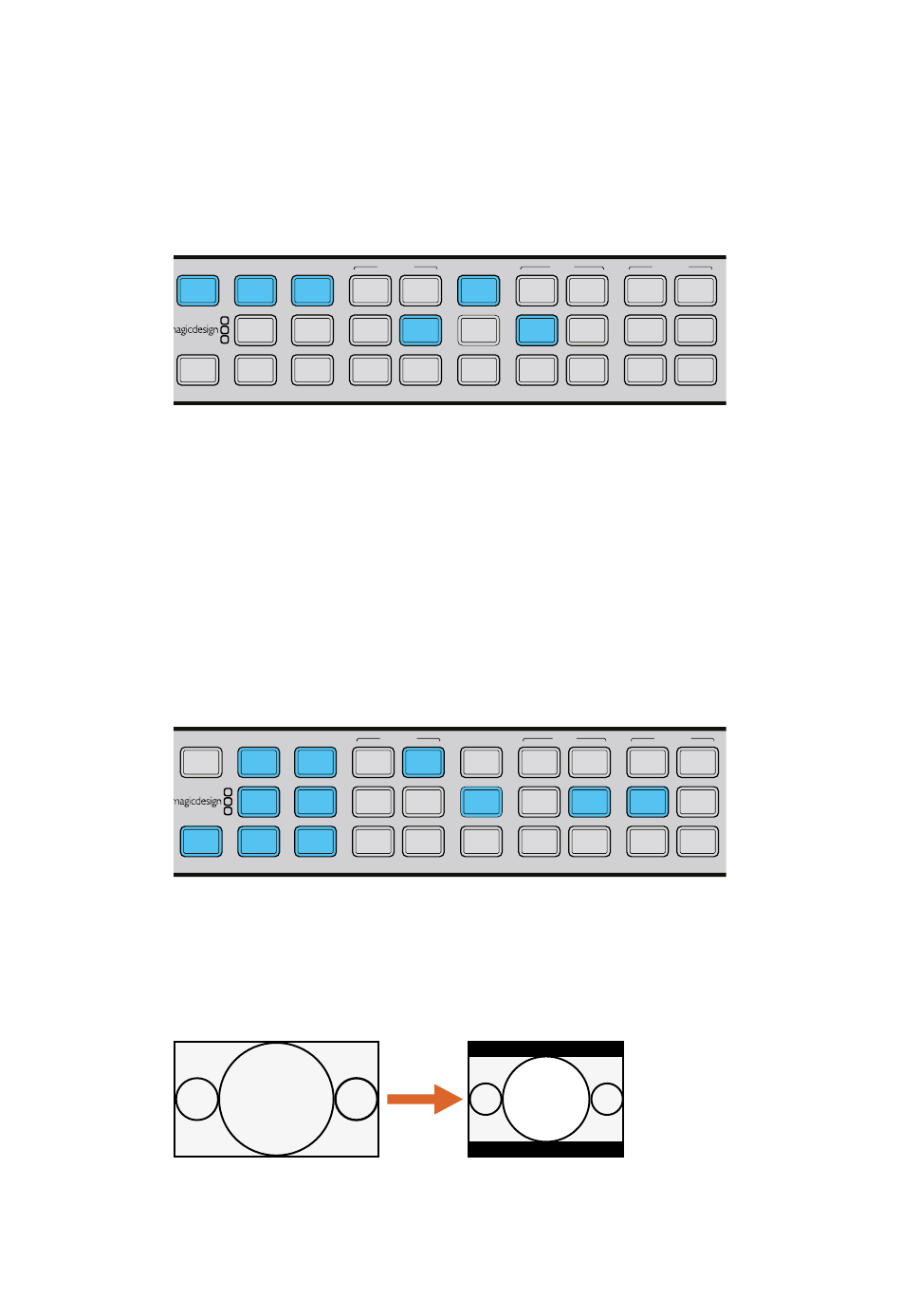

Pressing the 'in' button displays the input format on the control panel buttons. In the
above illustration, the input format is 1080p25 via SDI with embedded audio.
Setting your Output
1 Press the 'out' button on the control panel. On the Teranex 2D, all output buttons will be
illuminated blue. On the Teranex 3D, the 'embed' audio button will be blue. Select the
'AES' or 'anlg' button. AES/EBU and analog audio outputs share the XLR connectors.
2 Press the '576' button. The button will illuminate green. Note that the 'I' button and the
'50' button are also illuminated green. This is because interlaced video and 50 fields
per second are the only selections available for a PAL 576 output.
3 Using the soft menu buttons, select 'change'. The output video is now displayed on the
LCD and sent to all output connectors. The buttons will also illuminate blue to confirm
your settings.
VIDEO
IN SDI
HDMI
OUT ANLG
Press the 'out' button to select your output settings. In the above
illustration the output is set to 576i50 with letterbox aspect ratio.
Setting your Aspect Ratio
Press the 'lbox/pbox' button to set your aspect ratio to letterbox. Your Teranex Processor is now
ready to down convert your video.
16:9 Ratio Image
Setting the LBOX/PBOX button on your SD output fits the 16:9 image
inside the 4:3 frame. The 4:3 conversion will have black bars top and bottom
and the correct widescreen geometry will be maintained.
AUDIO FORMAT FRAME
486 576
EMBED
AES 720 1080
2K
ANLG
1080
AUDIO FORMAT FRAME
486 576
EMBED
AES 720 1080
2K
ANLG
1080
4:3 Ratio Display
RATE
P 23.98 24 ANAM
LBOX
I 25 50
PBOX
29.97 59.94
PSF SMART
30 60
RATE
P 23.98 24 ANAM
LBOX
I 25 50
PBOX
29.97 59.94
PSF SMART
30 60
ASPECT
14:9
CCUT
ZOOM
ADJ
ASPECT
14:9
CCUT
ZOOM
ADJ
Conversion Workflows 28 28
