After adjustment, the associated button will illuminate white to indicate a non-default setting.
To reset to its default setting, select the parameter via the 'proc amp' menu or control panel
button and then push the rotary knob. To easily return all parameters to their default settings,
go to the 'proc amp' menu and select 'reset all'.
‚ Gain
Range: -60 to +60. Default: 0
‚ Saturate
Range: -60 to +60. Default: 0
‚ Black
Range: -30 to +30. Default: 0
‚ Hue
Range: -179 to +180. Default: 0 degrees
‚ R-Y and B-Y
Range: -200 to +200. Default: 0
‚ Sharp
Range: -50 to +50. Default: 0
‚ Reset All
Resets all Proc Amp parameters to their default values
Color Video
Clip
Aspect
Setup
Video Menu>Proc Amp
Test Patterns Menu
The internal test signal generator provides a black output and test patterns. You can add audio
test tones via 'output mapping' in the 'audio main menu'. For more information on output
mapping, see the 'audio menu settings' section in this manual.
Color Video
Clip
Aspect
Setup
Video Menu>Test Patterns
Below are test patterns available via the 'video>test patterns' menu.
SMPTE 75%.
Proc
Gain Proc Amp
Amp
Test
Saturate
Patterns
0
Advanced R-Y / B-Y
Reset
All

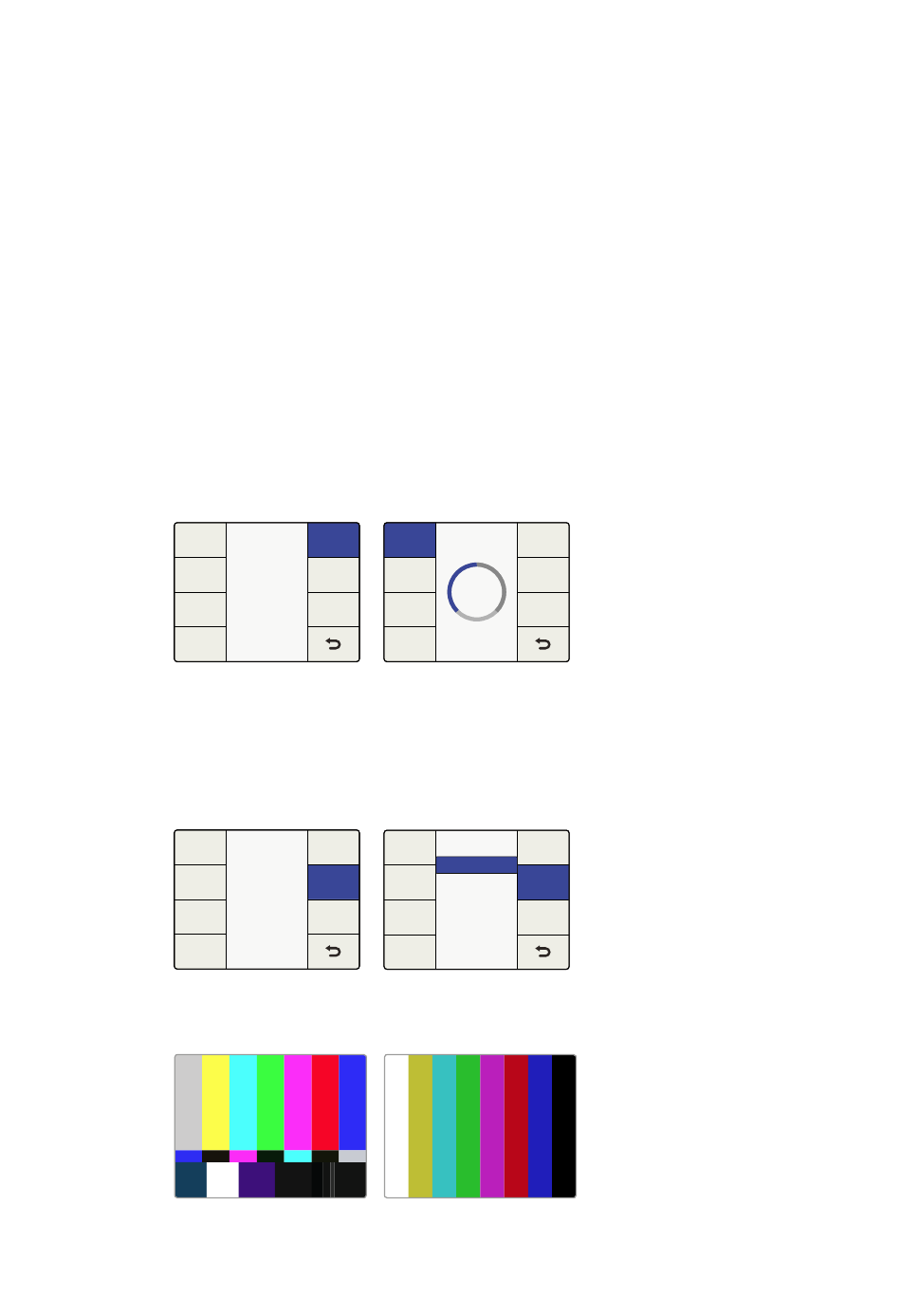

Proc Amp Menu>Gain
Proc
Video
Color
Amp
Off
Test
Clip
Colorbar 75%
Patterns
Black
Advanced Aspect
Grid
SMPTE 75%
Setup
Res Chart
Test Patterns Menu
Colorbar 75%.
Black
Hue
Sharp
Proc
Amp
Test
Patterns
Advanced
Teranex Processor Settings 41 41
